Hilights
12x60W RGBW LED Swing Bar – Powerful Wash, Beam & Pixel Effects
Equipped with 12 x 60W RGBW 4-in-1 LEDs, this 800W LED swing bar delivers intense wash, beam, and pixel-mapping effects.
Featuring advanced 32-bit linear dimming, 180° smooth tilt movement, and a 4–45° motorized zoom, it offers exceptional versatility for dynamic stage performances.
Multiple DMX channel modes (CH20 to CH179) with RDM support ensure precise control. Designed with a durable metal housing, DMX/power in & out, and reliable operation from -30°C to 50°C.
Specification
Voltage: AC100~240V 50/60HZ
Power:800W
Lamp beads: 12 * 60 W RGBW 4IN1 LEDs
Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function. Channel: CH20. CH169A CH169B.CH53.CH101.CH155.CH179
Dimming: 32-bit 0~100% linear dimming
Features: Single swing+staining+beam
Tilt Movement: 180°,16 Bit
Zoom:4-45° Working temperature: -30 ° C~50 ° C
Strobe frequency: 1-30HZ
Appearance: Metal, Black
Connection method: DMX512 input/output/power input/output. IP rating: IP20
Size: 1000 * 300 * 165MM
Weight: 26.5 kg
Check the Instruction Manual.

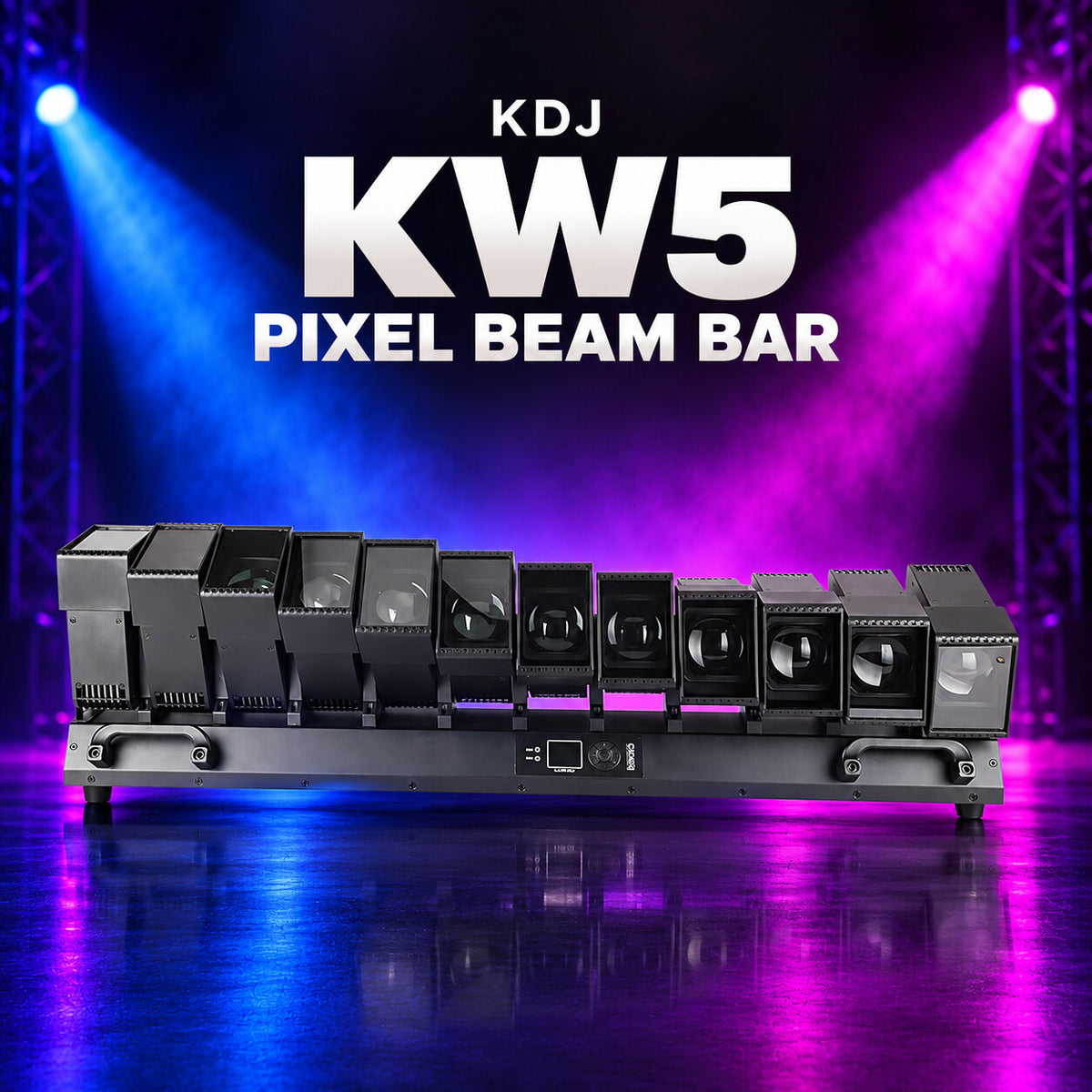

KW5 12x60w Zoom Pixel Beam Bar Moving Head Light
What This Is For
KW5 12x60w Zoom Pixel Beam Bar Moving Head Light is a motorized stage-light fixture for beam effects. Use it within a configured lighting rig where the movement and control channels match the intended show.
JR Recommends
Choose the optical effect and coverage first. Check the mounting, power, control profile, and environmental rating for this exact fixture before planning the installation.
