EVO+ Smart Pixels – 12V 12mm RGB Nodes | 4″ Spacing | 18 AWG Wire | xConnect | Pre-Order

£23.00
Pre-Order
Count

EVO+ Smart Pixels – 12V 12mm RGB Nodes | 4″ Spacing | 18 AWG Wire | xConnect | Pre-Order - 100ct 4" Spacing is backordered and will ship as soon as it is back in stock.


EVO+ Pixels by Mattos Designs

12V 12mm Smart Pixels • Patent-Pending Design • 18 AWG Wire • Built for Large Displays

Take your lighting display to the next level with EVO+ Pixels from Mattos Designs — the latest evolution in our EVO pixel platform. These 12mm smart pixels feature a patent-pending design engineered for higher reliability, lower power draw, and long-term durability in real-world holiday and architectural lighting displays.

This isn’t a spec-sheet pixel. This is what we actually run in the field.

🔑 Key Features

⚡ Native 12V Advanced LED Technology

EVO+ pixels use a native 12V HS-3248RGB-B chip/LED combo with no resistors or regulators on the pixel. Fewer components means:

  • Fewer failure points

  • Higher efficiency

  • Cleaner, more stable operation

Each pixel draws just 9mA, allowing longer runs and higher pixel counts before power injection is needed.

🔁 Dual Data Line Protection

The 4-wire design using the HS-3248RGB-B protocol ensures that if a single pixel fails, the rest of the string continues operating normally. No dead-string nightmares.

🔋 Constant Current Design

Unlike traditional bullet pixels, EVO+ pixels maintain consistent current draw at all brightness levels. This design benefits larger builds (250+ pixels) by:

  • Improving voltage stability

  • Reducing brightness drop-off

  • Supporting cleaner power balancing

🛡️ Industrial-Grade Durability

Built to survive real weather and real installs:

  • Fully epoxy-coated PCB and wire assembly

  • Over-molded into a PVC outer shell

  • Double-sealed construction for superior water resistance

  • UL-listed LED package with separate UL certification for the pixel string

Rated IP67 and designed for long-term outdoor use.

🔧 Installer-Friendly Design

  • Pixel face sits flush in 10mm coroplast props

  • Integrated locking nubs for secure installs

  • Slightly tapered 12mm shell with a flat back for easy insertion

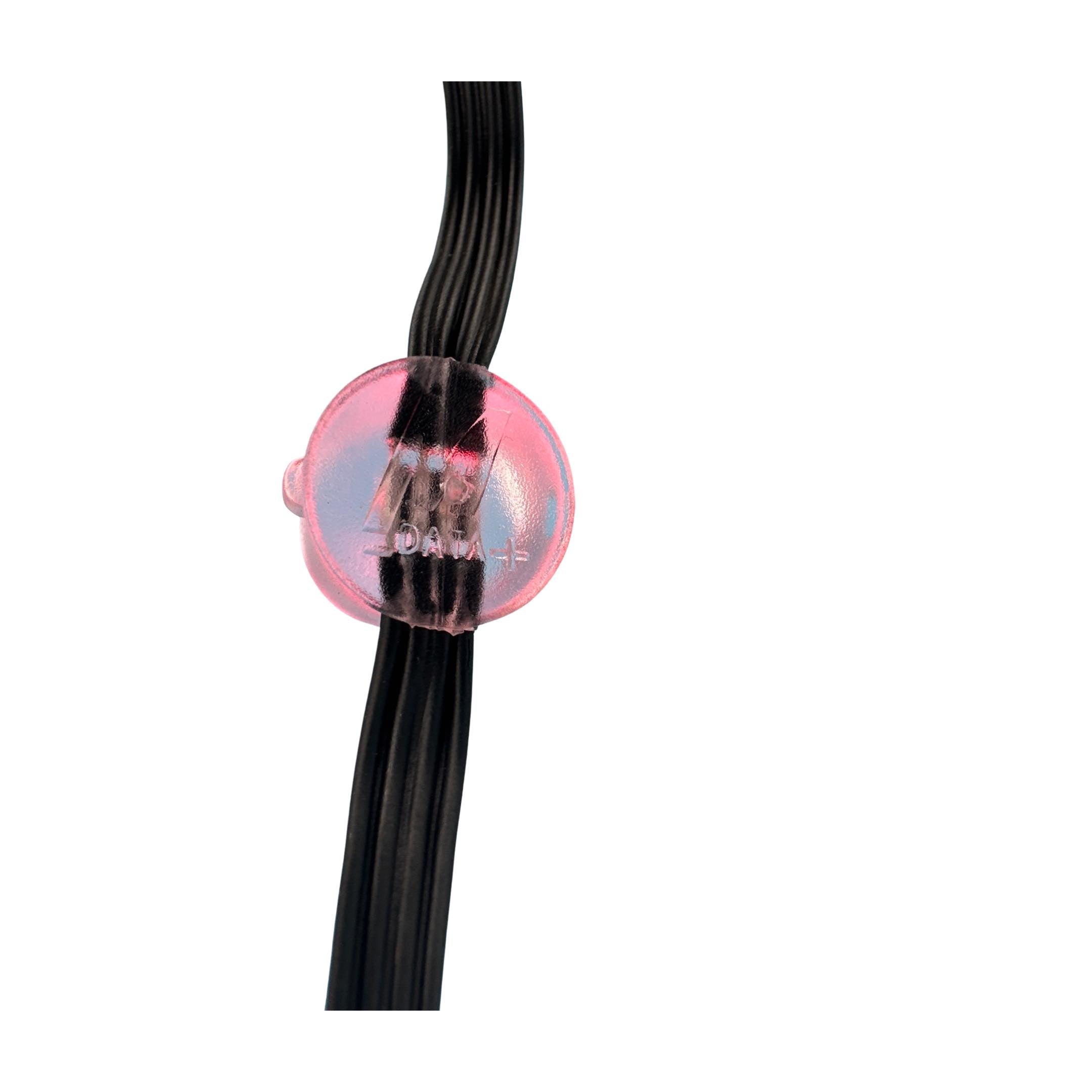

  • Clear “+ Data –” markings on every pixel

Designed to install fast and stay put.

🪶 Lightweight, High-Density Friendly

At 238g per 100 pixels (4″ spacing), EVO+ pixels dramatically reduce prop weight.
A 1,000-pixel high-density prop weighs 11.25 lbs less compared to traditional 12V bullet pixels.

Lighter props = easier installs, less stress, better longevity.

✨ Brilliant, Even Illumination

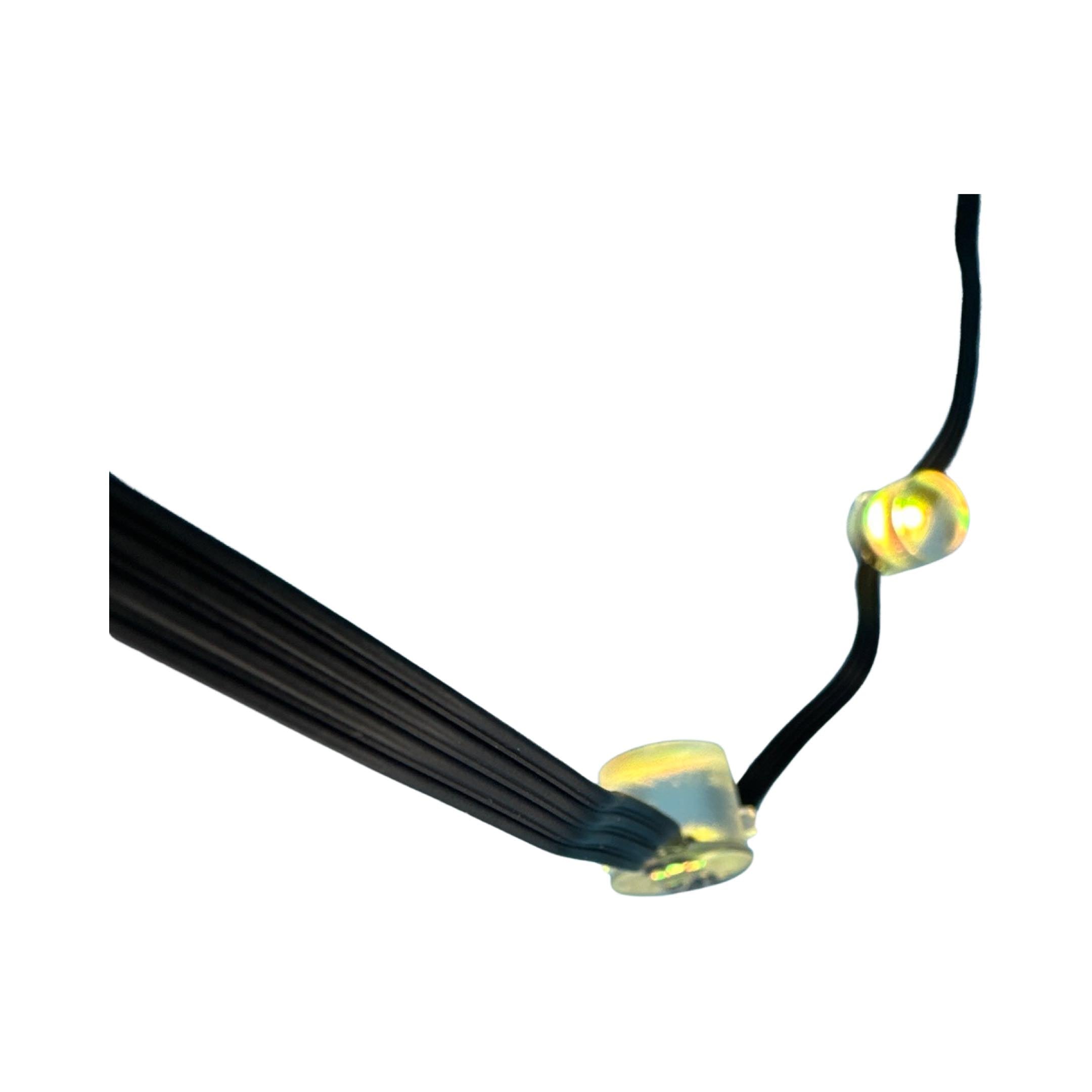

  • Full 12mm illuminated face

  • Side and rear light spill for smoother diffusion

  • Bright, consistent color across the entire run

These pixels look good up close and at distance.

⚙️ Technical Specifications

  • Voltage: 12V DC (native, no resistors or regulators)

  • Protocol: HS-3248RGB-B

  • Node Size: 12mm

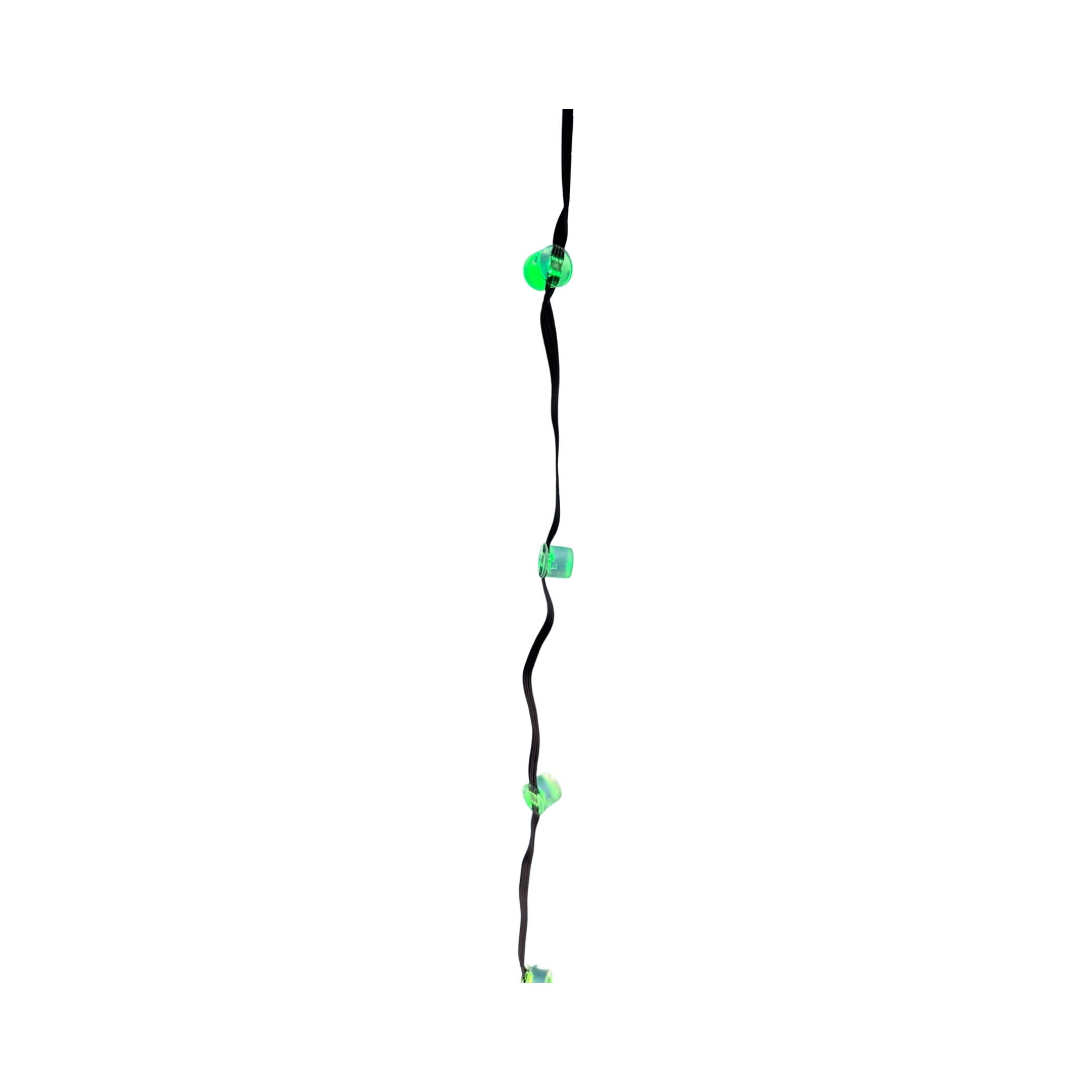

  • Spacing: 4 inches

  • Wire: 18 AWG black wire (upgrade)

  • Protection Rating: IP67 (encapsulated PCB + PVC shell)

  • Connectors: 3-wire to 4-wire adapter included for xConnect pigtails

  • Certifications: CE, RoHS, FCC

  • Packaging Options:

    • 200 Count

    • 100 Count

    • Two 50 Count

    • Four 25 Count

  • Warranty: 3-Year Warranty on unmodified, uncut pixel strings

✅ Why Choose EVO+ Pixels?

  • Fewer internal components = higher reliability

  • Constant current design for large-scale displays

  • Double-sealed waterproof construction

  • Lightweight and installer-friendly

  • Built and tested by people who actually run shows

Built Right. Field-Tested. Ready to Perform.

Mattos Designs EVO+ Pixels are built for creators who demand reliability, efficiency, and clean performance — whether you’re running a massive MegaTree, detailed props, or architectural accents.

No shortcuts. No fluff. Just pixels that work.

We can handle it. We’re professionals.
