SPECIFICATIONS
Light Source: 6 x 60W RGBW LEDs, 72 x 2W CW LEDs, 72 x 2W WW LEDs
Beam Angle: 2.8°-31°
Field of View: 5°-60°
Input Voltage: AC 100V-240V 50/60Hz
Color Rendering Index: Ra ≥ 90
Light Source Lifespan: 50,000 hours
Dimming: 0-100% 16-bit dimming
Cooling System: High-speed, low-noise, waterproof fan with forced convection cooling
Protocols: DMX512, RDM, Audio Control
Functions: Display panel control with static mode, custom mode, 0-25Hz strobe
DMX Channels: 21/51/55/75 channels on the X/Y axis
Tilt angle: 202°
Power consumption: 400W
Power connection: Input/output
Data connection: 3-pin or 5-pin signal cable input/output
Operating environment: -20°C to 45°C
Protection rating: IP20
Material: Aluminum+plastic
Warranty(Year): 1-Year
Dimensions: 519*124*326mm(17.56*8.46*14.84in)
Weight: 14.6kg

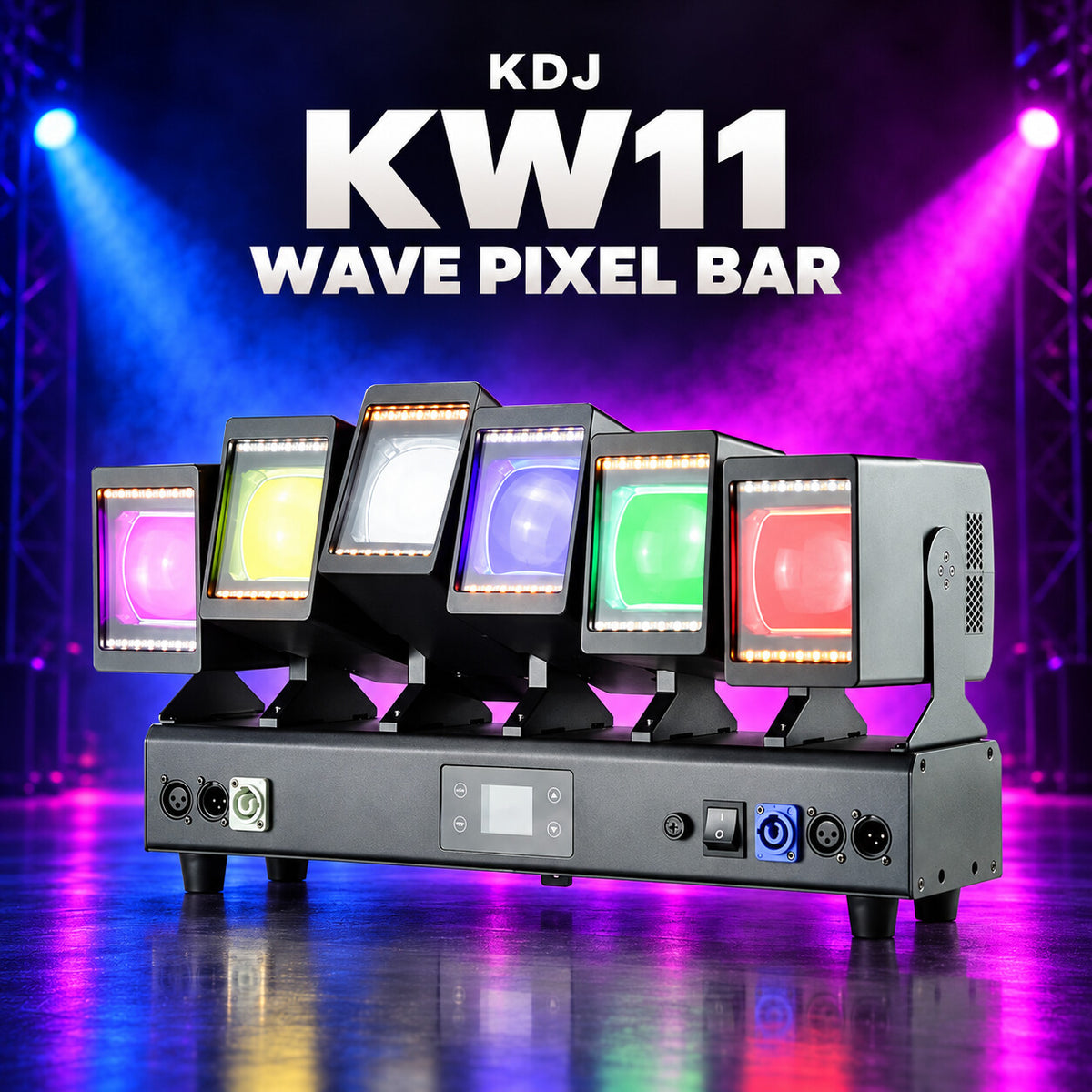

KW11 6×60w RGBW 4in1 Beam Wash Zoom Wave Pixel Led Bar with Auxiliary Light
What This Is For
KW11 6×60w RGBW 4in1 Beam Wash Zoom Wave Pixel Led Bar with Auxiliary Light is a motorized stage-light fixture for wash effects. Use it within a configured lighting rig where the movement and control channels match the intended show.
JR Recommends
Choose the optical effect and coverage first. Check the mounting, power, control profile, and environmental rating for this exact fixture before planning the installation.
