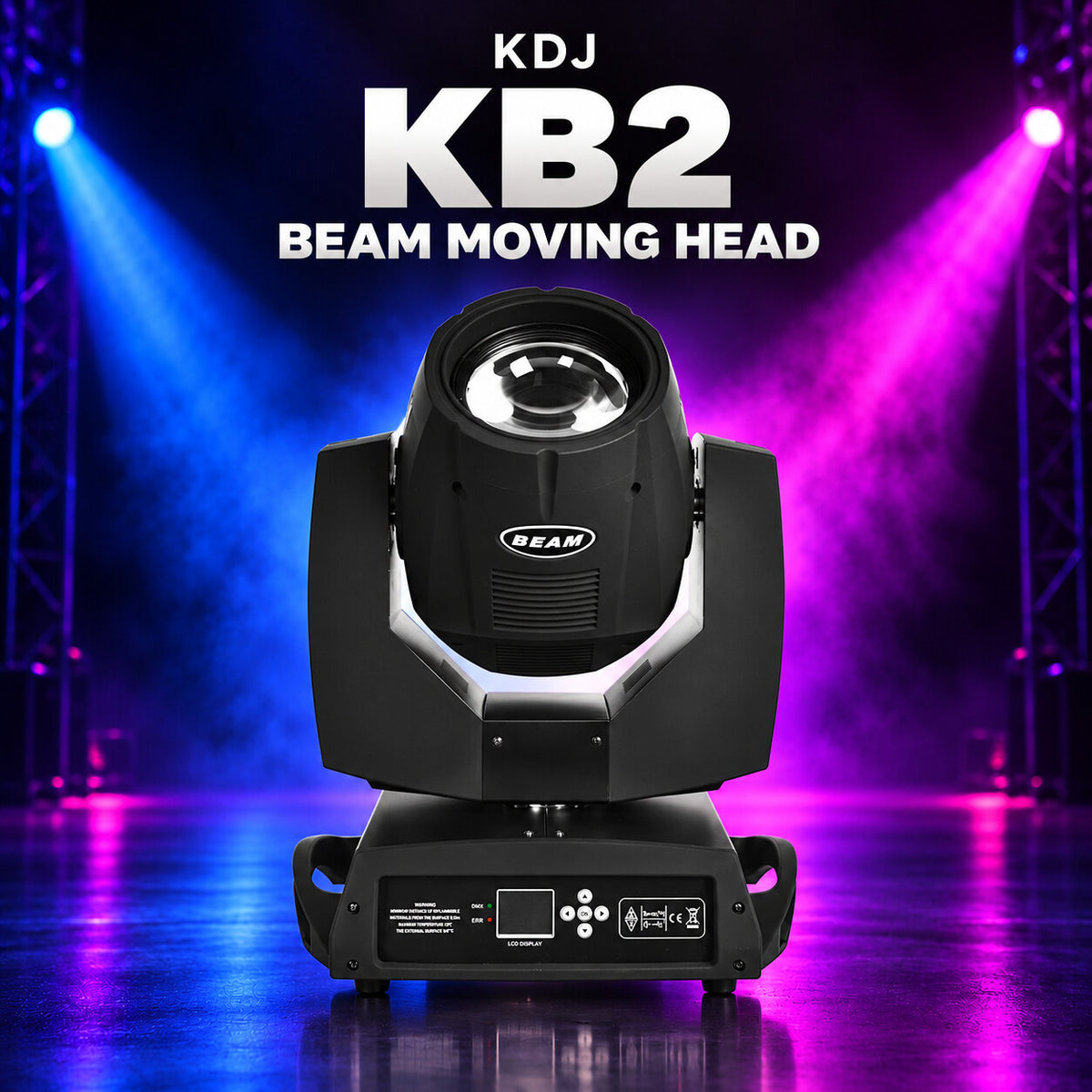

KDJ KB2 beam moving head fixture with its original photographed construction against a blue and magenta stage.

Hilights

A high-intensity beam fixture designed for professional stage, club, and event applications. Powered by a 230W 7R lamp, it delivers a sharp 3° beam angle and an impressive 59,760 LUX at 25 meters, ideal for long-throw projection and aerial effects.

  • Power Supply: AC110–240V, 50/60Hz

  • Lamp: 230W 7R, 8500K color temperature

  • Light Output: 59,760 LUX @ 25m (65 feet)

  • Control Modes: DMX512, Master/Slave, Auto, Sound Active

  • DMX Channels: 16CH

  • Color Wheel: 14 vibrant colors + white

  • Gobo Wheel: 17 static gobos + open, independent gobo & color wheels

  • Prism: 8-facet rotating prism for multi-beam effects

  • Dimming: 0–100% smooth linear dimming

  • Movement: 540° pan, 270° tilt

  • Power Consumption: 350W

  • Dimensions：53cm*41cm*45cm
  • Weight：17.5kg

Perfect for creating powerful beam effects, dynamic patterns, and vibrant color projections on any stage.

KB2 230W 7R Beam Light Moving Head Light

$694.00 $757.00
Backorder
Quantity
Plug

What This Is For

KB2 230W 7R Beam Light Moving Head Light is a motorized stage-light fixture for beam effects. Use it within a configured lighting rig where the movement and control channels match the intended show.

JR Recommends

Choose the optical effect and coverage first. Check the mounting, power, control profile, and environmental rating for this exact fixture before planning the installation.

— JR
