Hilights

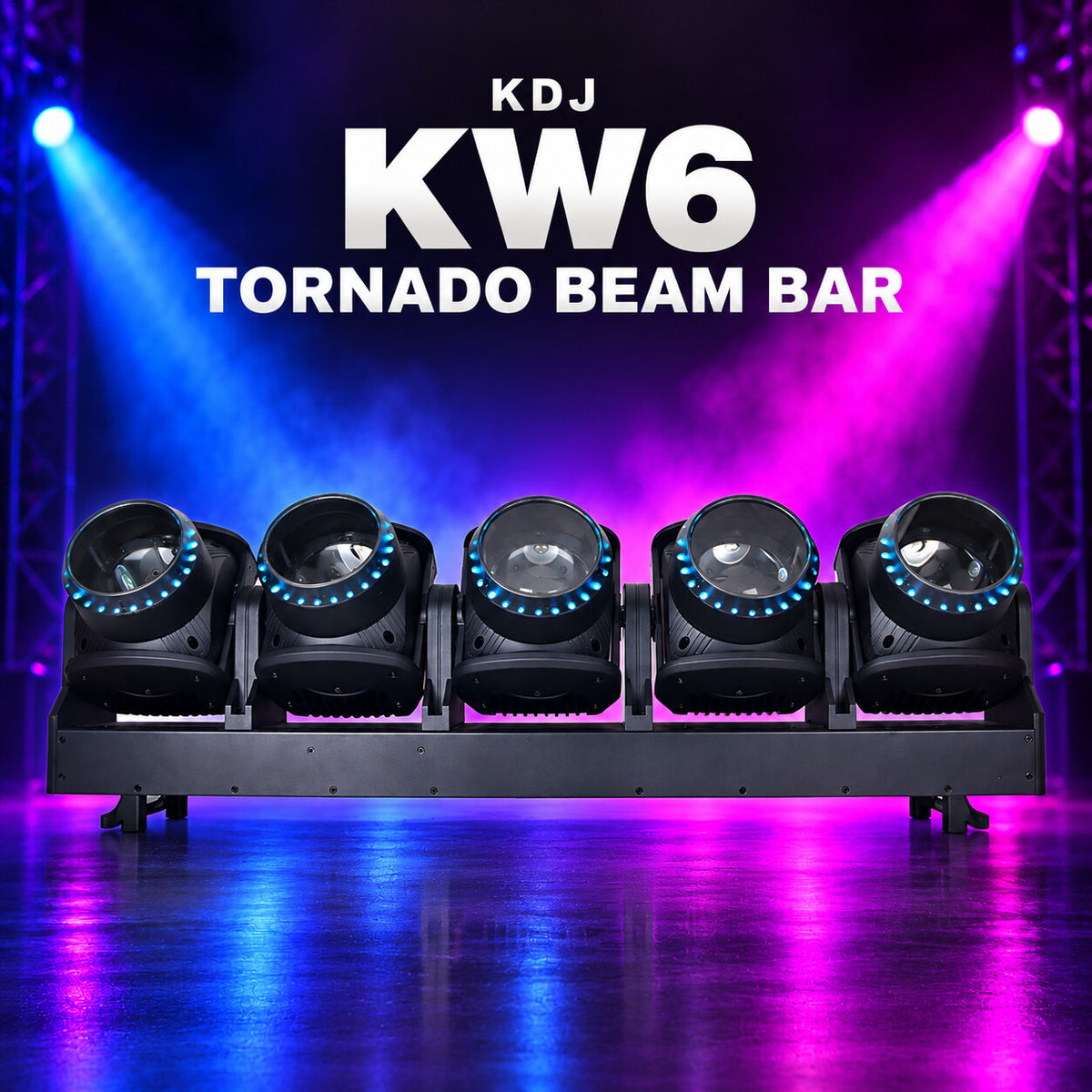

High-Power LED Moving Bar Light
Equipped with 5×120W main LEDs and 120×0.5W RGB outer LEDs, this fixture delivers up to 13,000 lumens with a beam angle of 3°–30° and a field angle of 4°–35°.
Advanced 16-bit pan (59°) and tilt (221°) movements offer smooth, precise positioning with auto-correction. Features include dynamic strobe, 0–100% linear dimming, rich colour mixing, and macro effects.
Supports DMX512 & RDM with 41/71 channel modes and onboard LCD. Ideal for professional stage, event, and architectural applications.
Specification
Light Source
Main Light: 5 x 120W LEDs
Outer Circle: 120 x 0.5W RGB LEDs
Total Lumen Output of Fixture: 13,000 lumens
Life Expectancy: 20,000 hours
Optical System
Beam Angles: 3°-50°
Field Angles: 4°-35°
Control and Program
4-button touch control panel
Display: LCD display
Protocols: DMX512, RDM
DMX Protocol Modes
Control Channels: 31/41/51/71/79CH
Firmware Upgrade: Upgrade via DMX link
Pan & Tilt
Pan Movement: 59°
Tilt Movement: 221°
Automatic Pan/Tilt position correction
Resolution: 16-bit
Other Effects
Outstanding strobe effects with variable speed
Variable light adjustment from 0-100% dimming
Outstanding colour mixing effects
Outstanding color macro effects
Linear focusing structure
Electrical and Connectors
Power In/Out
Input Voltage Range: 100-240V~ 50/60Hz
Power Consumption: 800W
Data In/Out: 3-pin XLR
Protection Rating: IP20
Fixture Specification
Fixture Size:1000*184*355mm
Net Weight: 26.6kg
Check the Instruction Manual.
KW6 5*120W Tornado LED 5-Head Focusing Moving Head Strip Light
What This Is For
KW6 5*120W Tornado LED 5-Head Focusing Moving Head Strip Light is a motorized stage-light fixture for moving light effects. Use it within a configured lighting rig where the movement and control channels match the intended show.
JR Recommends
Choose the optical effect and coverage first. Check the mounting, power, control profile, and environmental rating for this exact fixture before planning the installation.
