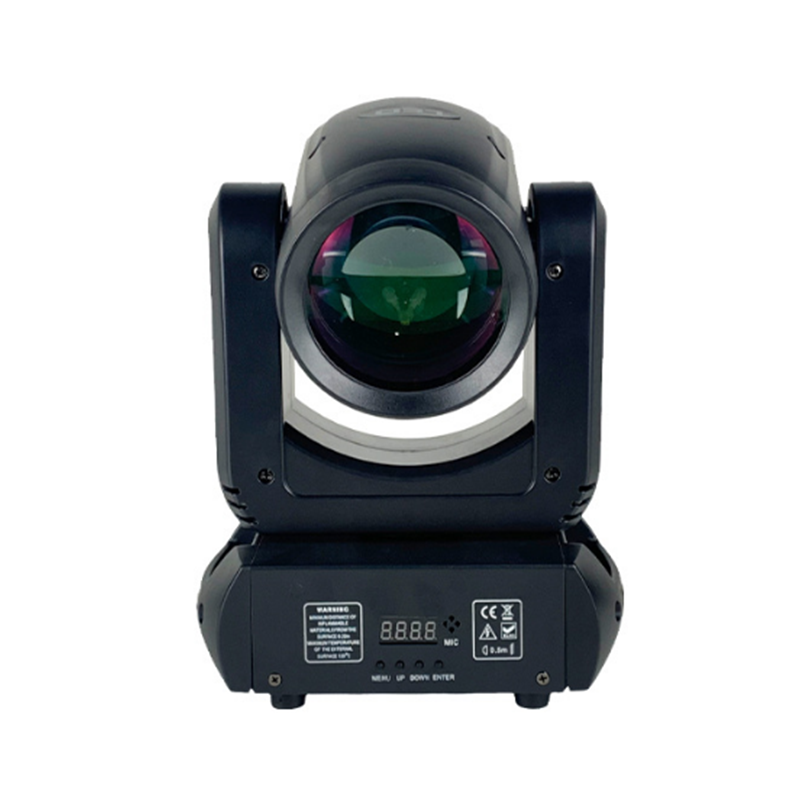

The KB3 is a versatile 150W moving head beam light designed for DJs, clubs, and stage use.

It delivers high-intensity beams, multiple control options, and a compact, eco-friendly design for exceptional performance in any setting.

Key Features & Benefits:

Precise XY-Axis Positioning: Enables accurate beam control and complex movements for creative stage lighting.

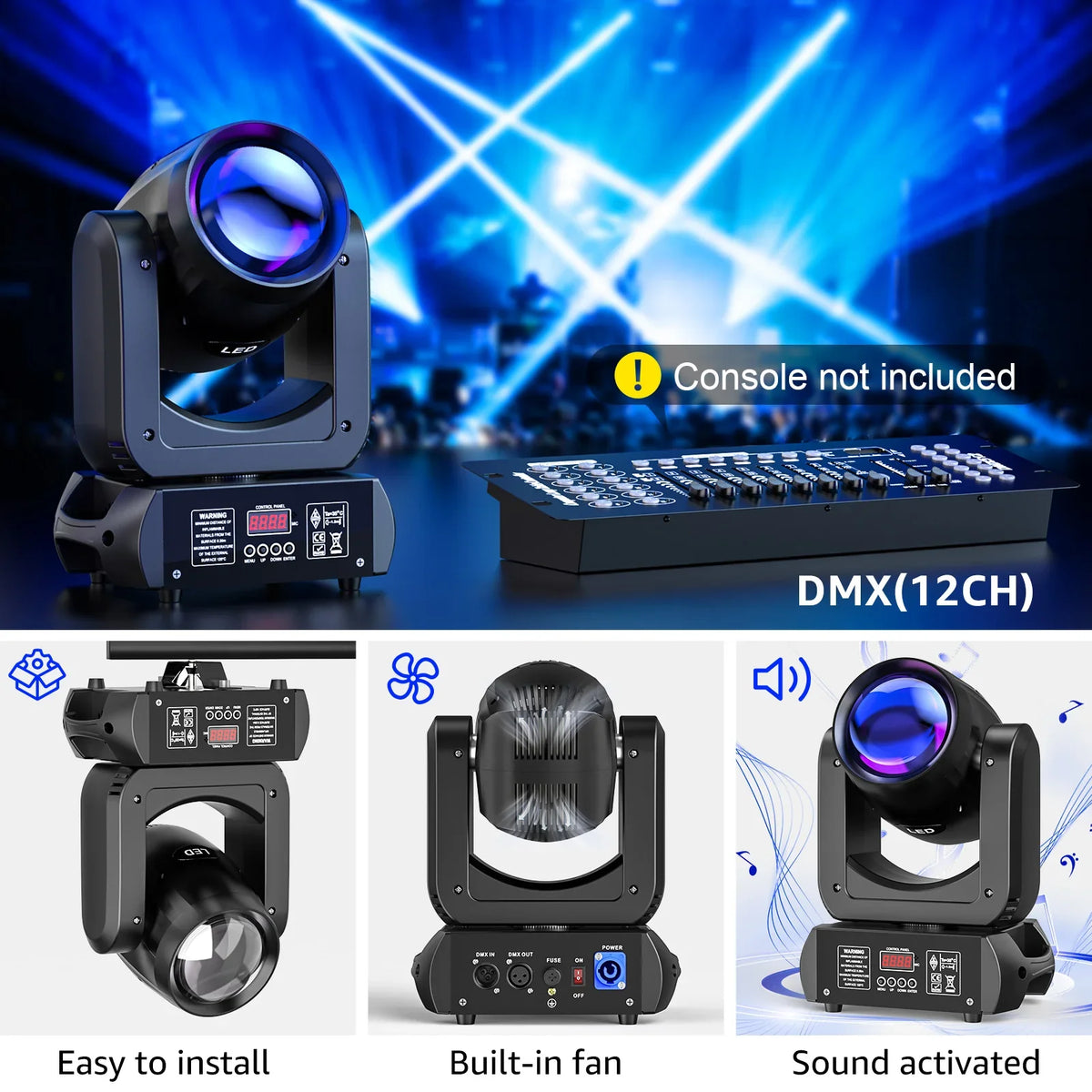

Multiple Control Modes: Supports DMX512, master-slave, and sound-active operation for flexible use in any scenario.

Intelligent Reset Function: Simplifies setup and operation, saving time and ensuring reliability.

Energy-Efficient 150W LED: Provides bright, long-lasting output with low power consumption, reducing operating costs.

Compact & Portable Design: Easy to mount on trussing, walls, or floors, making it ideal for mobile DJs and fixed installations.

Specification:

Color: black

Material: Aluminum alloy+plastic

Input voltage: AC100～240V, 50/60HZ

Power: 150W (Actual power: 110W)

Light source: 1PCS 80W  COB LED

Color plate: 7 colors + 1 white light hole, with half-color effect

Fixed gobo disk: 7 patterns + 1 white light hole

Prism: 18 prisms

Light angle: 2.8°

Operation mode: self-propelled, sound control, master-slave, DMX

Channel: 12CH

Protocol: 12 international standard DMX512

Color temperature: 8000-9000K

Illuminance: 34000Lux@5m

LED average life: 20000H

Strobe: 1-25Hz

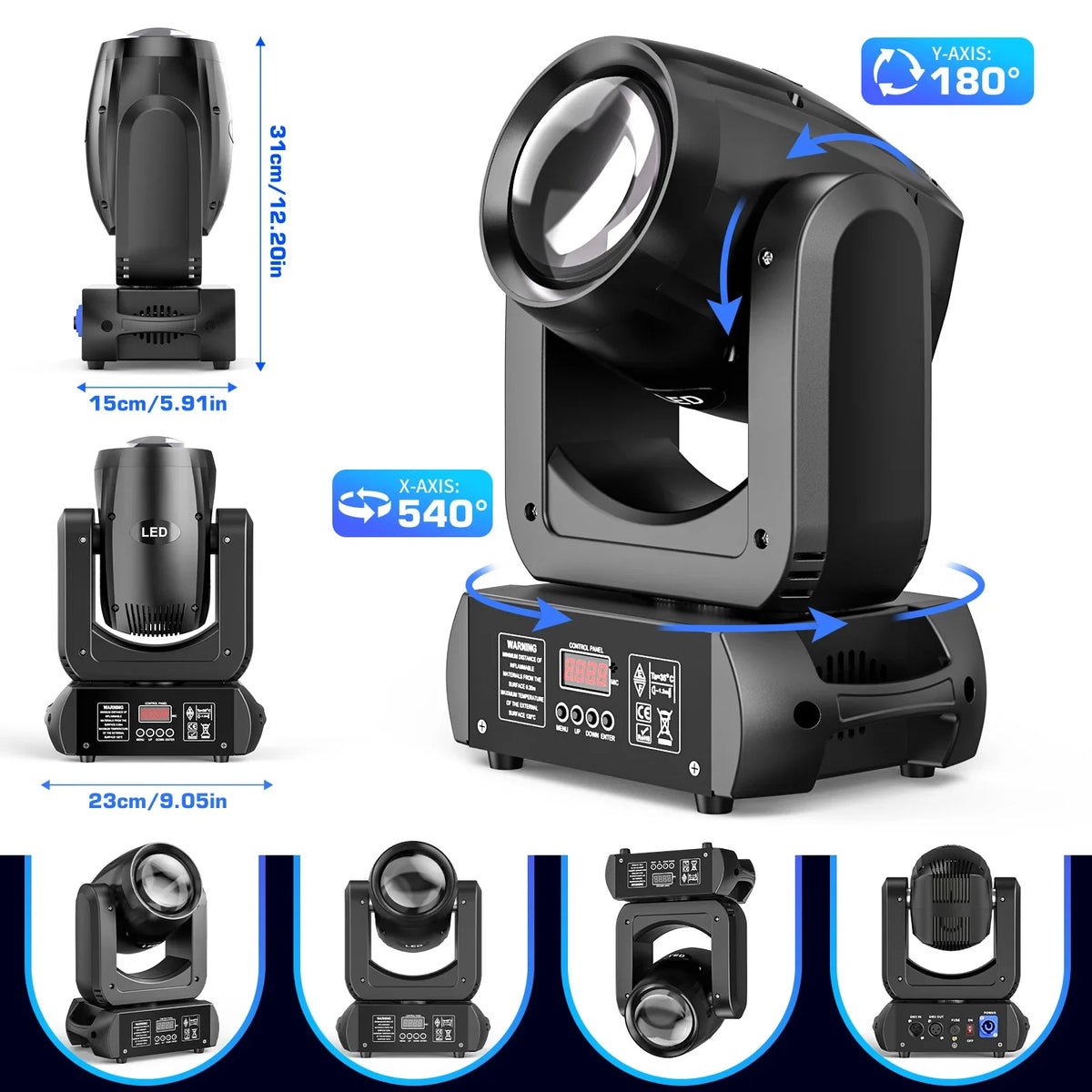

X-axis: 540° precision 2.11°/step, fine adjustment precision 0.008°

Y-axis: 180° precision 1.05°/step, fine-tuning precision 0.004°

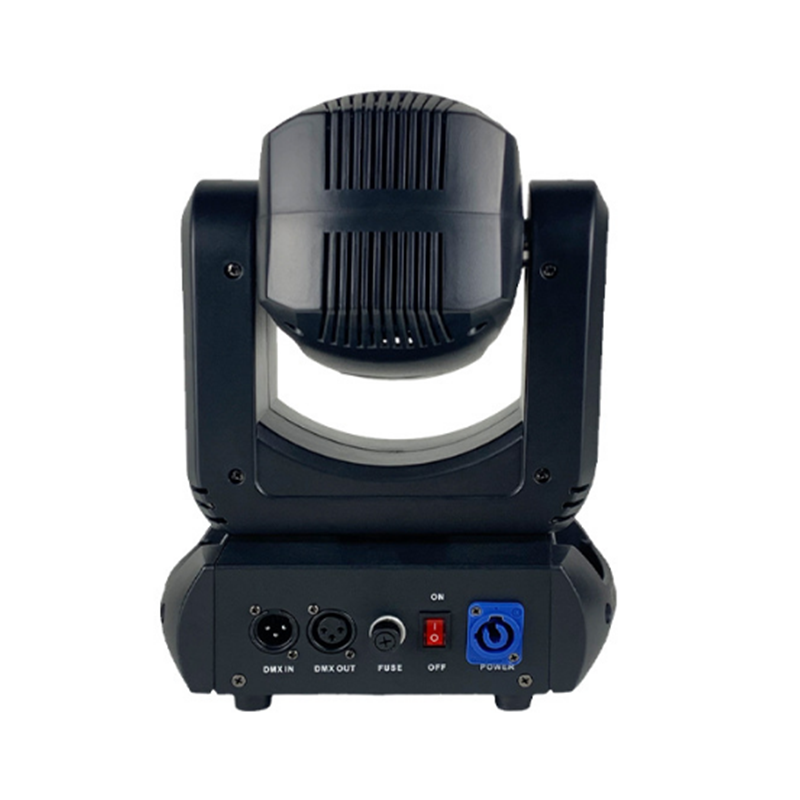

Data Connection: Three-core XLR input/output

Display: 4-digit digital display

Protection grade: IP20

Working environment: -20℃-40℃

Packing List:

1. Lamp *1

2. Bow support *1

3. Power cord *1

4. Screws *2 (installed on the machine)

5. Instruction manual *1
