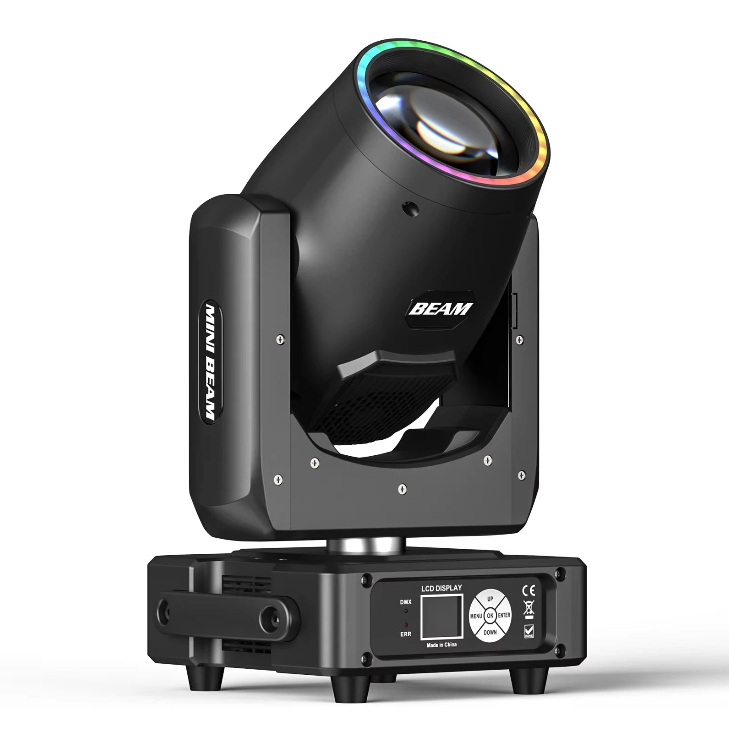

Elevate your stage production with the KB5 Mini230 with RGB LED Strip
A compact yet powerful Moving Head Beam designed for professional DJs, clubs, and events. This versatile fixture combines a razor-sharp beam with a stunning visual twist: a built-in RGB LED strip featuring 27 LEDs for an incredible 48 unique lighting effects. Create dynamic honeycomb prism effects, mesmerizing rainbow washes, and intricate patterns with its 48-facet prism and 14 fixed gobos.
With 13 vibrant colors and flexible motion control (540° pan, 270° tilt), this Moving Head Beam delivers unparalleled creative freedom. Advanced features like DMX512/RDM control, sound-activated mode via a built-in microphone, and easy daisy-chaining of up to 6 units make setup and operation a breeze. Housed in a durable casing with quick-lock brackets for fast installation, the KB6 Mini230 is the ultimate lighting tool for creating a high-impact, professional light show every time.
Specification:
Light Source：1PCS white 230W OSAM Light Bulb + 27PCS 0.5w RGBW three and a LED lamp beads
Color temperature: 7000K-8000K
Lamp output luminous flux: 9800lm
LED average life:2000H
Optical systems：
Angle of light: 2.3°
Effective control distance: 5-30M
Illumination: 230000Lux@10 meters
Prism/fogging piece：
1PCS 48 ling honeycomb mirror
colorful fogging: rainbow effect + fogging effect
Color plate: 13+1 color plate (13 color pieces + 1 white light hole)
Fixed gobo disk: 14+1(14 patterns + 1 white light hole)
Other Effects：
Motorized focusing system： focusing angle range: 2-8°
Multiple speed strobe effect：1-10Hz
X/Y axis：
X-axis：540°
Y-axis：270°
X-axis/Y-axis position out-of-step auto-correction
X-axis/Y-axis: 16 bit precision scanning
Fixed lock: horizontal/vertical lock
Control and Programming：
Control protocol: Standard DMX512 protocol RDM protocol
Channel Mode: self-propelled, voice-activated, master-slave, DMX512
Control channel: 18CH
Control panel: LCD
Electrical and Interfaces：
Input voltage range: AC110V-240V 50/60Hz
Rated power: 450W
Data Connection: Three-core XLR input/output
Power Outlet: Power Connector Input/Output, Straight Outlet
Light Specification：

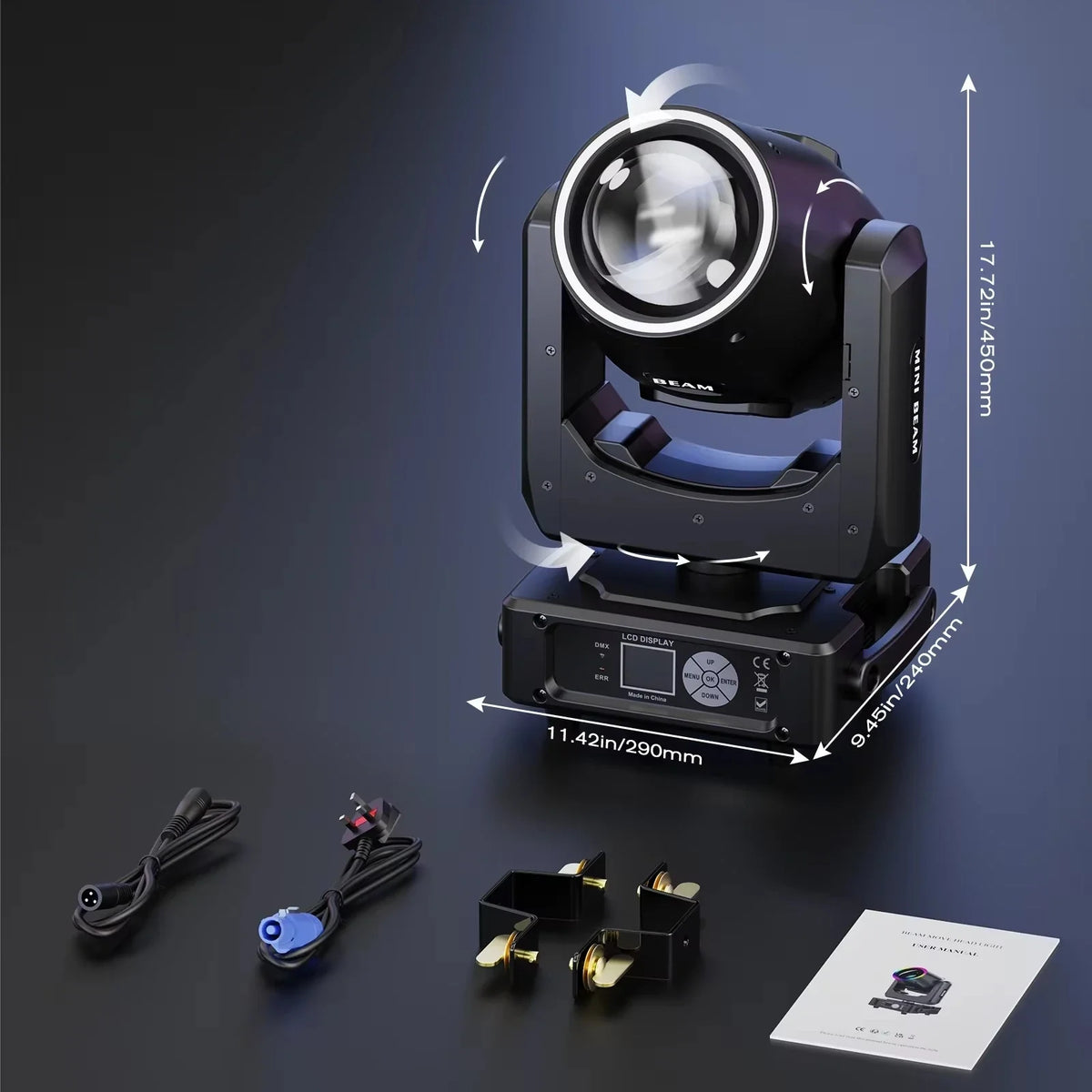

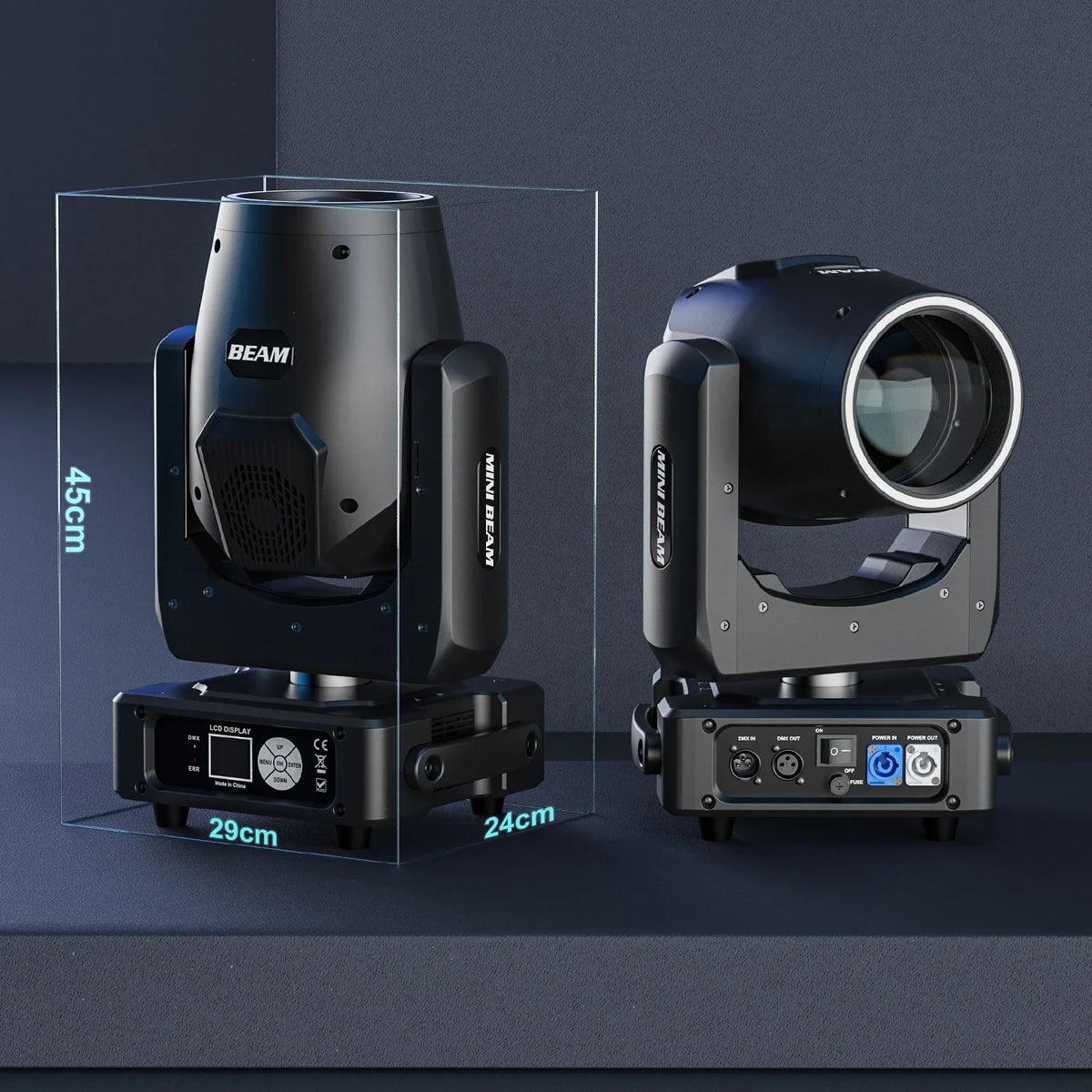

Light dimensions: 290x240x450mm ；Net weight 10.2kg
Carton size:370x350x500mm；Weight: 12kg
Working environment：
Maximum ambient temperature: 45°C
Minimum Operating Temperature: -10°C
Maximum surface temperature: 60°C
Protection class: IP20
Packing List:
1. Stage light *1
2. Stand *2
3. Power cord *1
4. Instruction manual *1
