Triangle Truss Segment Extension by GRIFFIN - 5Ft Extra Trussing Section for DJ Booth Lighting System Stand - Mount Light Cans & Sound Effects Stage
(6" x 6" x 6" x 5 Feet) Triangle Crank Up Truss Stand Lighting System by Griffin
Need to make your truss system wider? Add an extra 5-foot truss section to your Griffin Triangle Truss System! Getting an extra truss section will provide an extension and more versatility to your current system. Triangle truss sections are 6 inches in width per side (6" x 6" x 6"). This offer is for 1 truss section as defined in the specifications below.
Each triangle trussing section is made with medium duty steel to be sturdy and durable. You can trust these triangle trusses to securely accommodate your equipment with a total load capacity of 200 pounds evenly mounted on maximum of 3 truss sections. Please note, if you are adding a 4th truss section to your system, the weight load will be reduced. This is to prevent sagging in the middle of the total span with 4 sections, Please see specifications below.
|
KEEP YOUR STAGE GEAR SAFEMade of medium-duty steel with sturdy steel piping that will safely mount your heavy light cans or stage accessories. This is an extremely durable and long-lasting trussing system, perfect for all your stage lighting needs. |
|

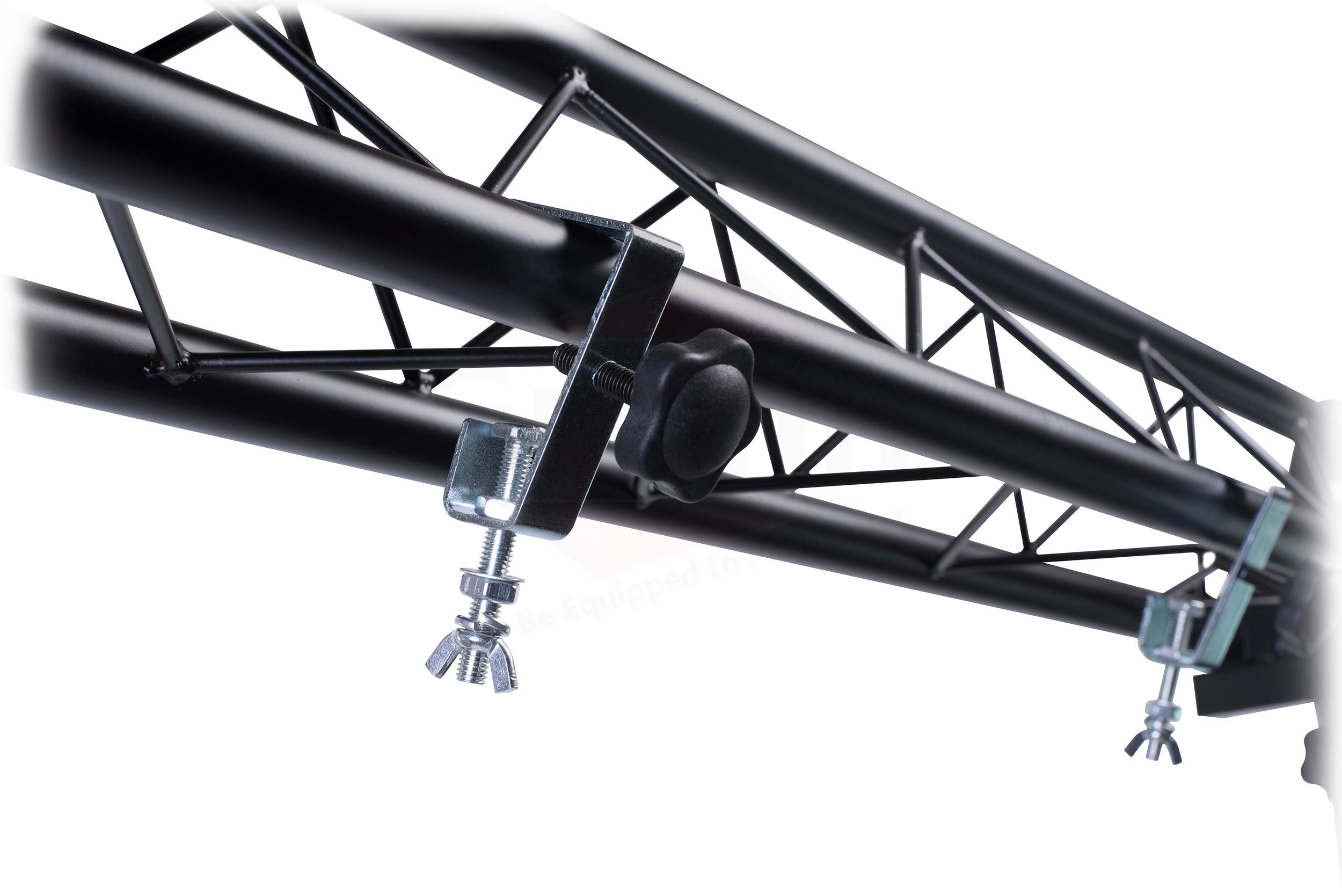

GIVE YOUR LIGHTING RIG THE PLACE IT DESERVESThe triangle pipe design allows you to use C clamps mounts (not included) to mount your can lights anywhere on the truss and on any of the 3 pipes. |
|
EXPAND TO EXISTING TRUSSES, OR INSTALL ON YOUR WALL OR CEILINGThree (3) mounting holes at the end of each side of the truss allow you to bolt this truss to another truss that gives you the ability to expand your length. Another option is to use the three (3) mounting holes to drill or hang from a stud wall or ceiling joist. |
|

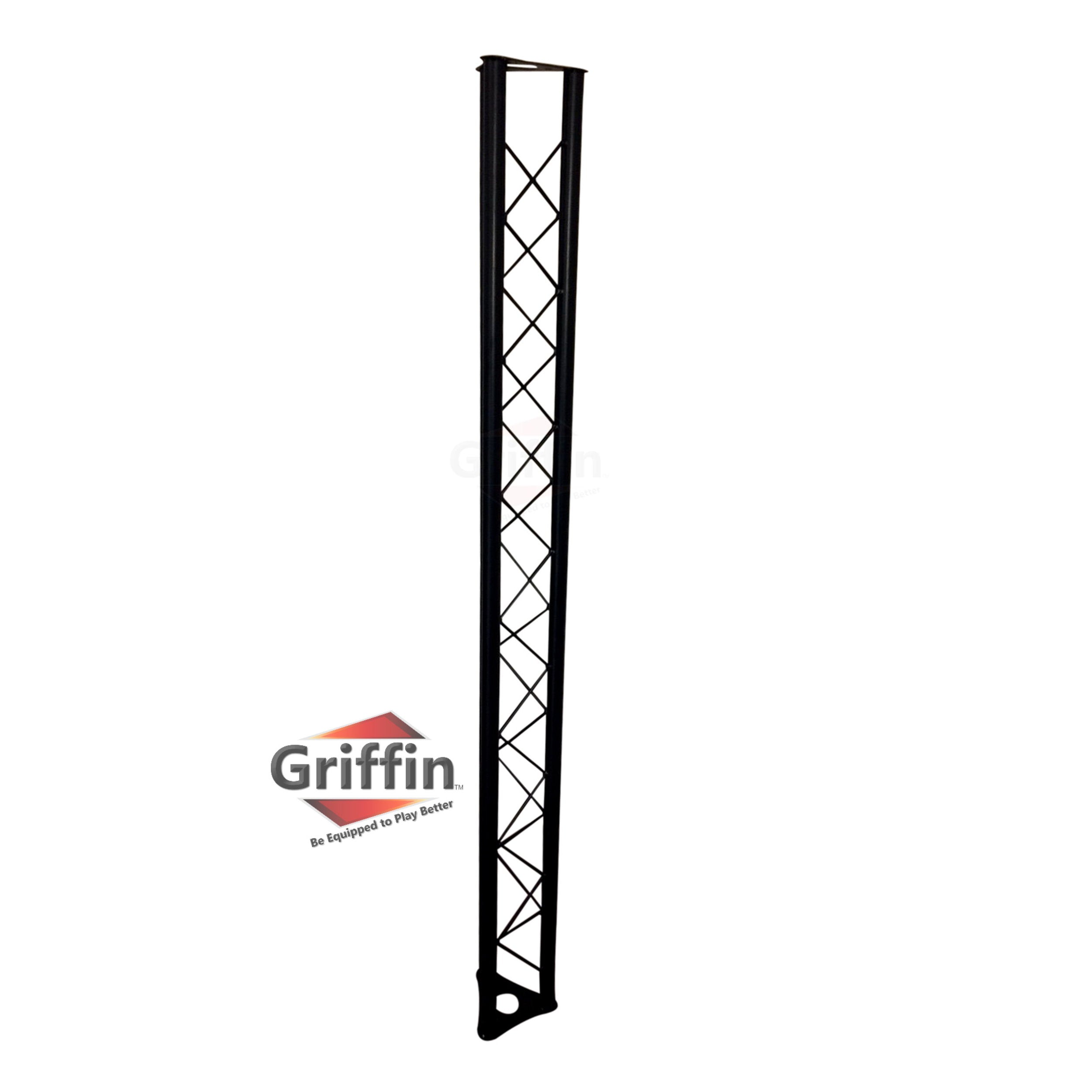

5 FOOT LONG BY 6” X 6” X 6” DIAMETER TRUSSAdd an extra 5-foot truss section to your Griffin Triangle Truss System. Getting an additional truss section will provide an extension and more versatility to your current system. Triangle truss sections are 6 inches in width per side (6" x 6" x 6"). Total Product Weight: 8 pounds | Total Shipping Weight: 9 pounds |
Triangle Crank Up Truss Stand Specifications
- Total span width: 59 inches wide
- Triangle truss sections are 6 inches in width per side (6" x 6" x 6")
- Diameter of truss pipes are 28.5 mm (1 1/8")
- Diameter of Diagonal Bracing: 6.5 mm
- Total Weight capacity load is 200 pounds (when using 3 sections): 66 Pounds on each section.
- Total Weight capacity load is 140 pounds (when using 4 sections): 50 pounds on each truss section directly connected to the Tripod Stand, 20 pounds on each truss section in the middle of the span.
- Total Product Weight: 8 pounds
- Total Shipping Weight: 9 pounds
|
Griffin Is a US Brand that is Owned & Proudly Operated in Tyler, TX USAGriffin is a small owned brand in Tyler, Texas, USA. Since 2011, the Griffin brand has been specializing in the development, design, and quality improvement of its snare drums, drum accessories, DJ speaker and DJ light stands, music studio equipment stands, and other musical and stage performance accessories. Whether you’re just starting in search of DJ equipment for beginners or a professional looking for music recording equipment, Griffin has a product for you. We put that belief into practice every day by offering dependable products made with high quality, durable materials that will last a lifetime. |
|
We Have Passion! Griffin is 100% operated by Musicians & DJ’sWe feel strongly that a brand that specializes in music gear accessories should also be fully staffed by people who have a passion and love for the product. Griffin is fully operated by musicians and DJs. We have a complete understanding of all our products from portable stage platforms, audio racks, to adjustable keyboard stands, because we commonly use our pro-audio gear. As such, we understand you, the fellow musician, and are always here to help. Additionally, as a proud, USA brand, Griffin only authorizes sellers which are completely based in the USA. |
|
Quality Powder Coating Process at Our FactoriesOur factories focus on quality and durability of the powder coating process. Metal parts are individually prepped, sanded, hung, coated and re-coated again. We ensure accurate color matching and use the highest quality of paint materials to ensure long lasting durability with rust protection and prevention. This results in uniform high-quality smooth finishes without sags or drip marks. Additionally, our paints are inspected at the factories to be environmentally safe, by passing or exceeding TCCA Title VI (EPA) compliant standards. |
|
Metal Parts Durability Stress TestSpecifications are important, and knowing the capacity loads is a must. For every new design, our factories go through rigorous stress testing to confirm the stated load capacity of our products. Additionally, as musicians, we always like to do a personal test with real use results. We use our own equipment to load up the product above the weight capacity to confirm the product still performs as it should in real situations. |
User/Owner Manual: Click Here for Owners Manual Need assistance in assembly or use instructions? Be sure to download and read your products instruction manual by clicking here!
GET IT RISK-FREE: Being so sure about the top quality and excellent performance of our products, we are able to offer you a 1 year replacement warranty and a 30 day money back guarantee. With nothing to lose, order today and save!
Fast & Free Shipping to the Lower 48 States: Being Free shipping on all items shipped to the lower 48 USA States. Regardless of order amount or what items being purchased. In other words, no limits or restrictions! Shipping to all other locations are calculated in your shopping cart.
Dedicated Customer Service: Consult our customer service reps for help with an order, or product support. Est. since 1999, we maintain a 99% customer positive feedback.

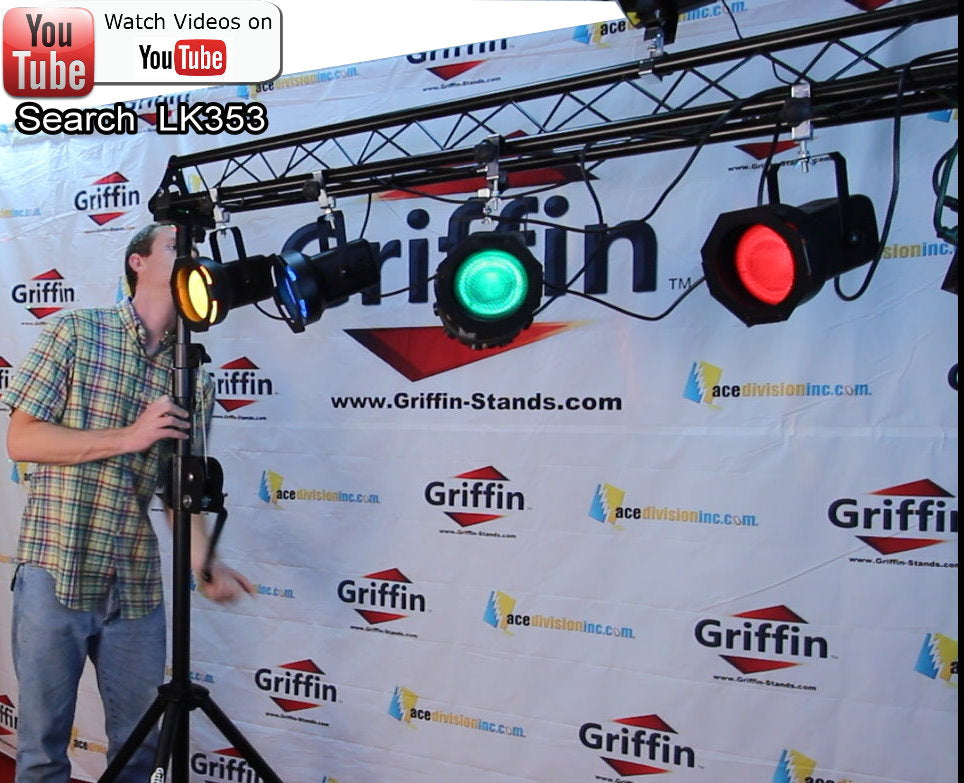

Video Product Demonstration: Check out our product demonstration videos. See below
