NOTE: The PB2 Industrial will have FPP installed on the internal eMMC. No SD card is required.

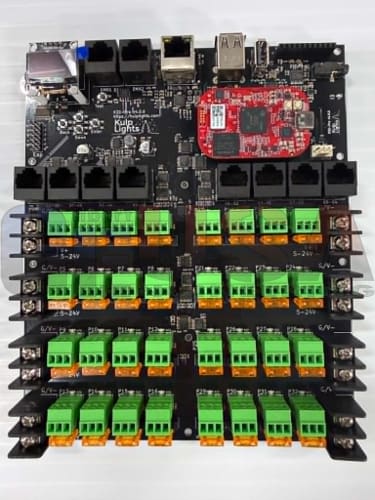

The K32-Pro is a cape for the PocketBeagle 2 that is designed to drive ws281x LED pixels. It has 32 local ports that can each drive 800 pixels (with power injection) at 40FPS. It also has 8 RJ45 differential ports that can output an additional 32 strings via differential receivers. Finally, it has two RS485 outputs for DMX, PixelNet, Renard, LOR.
The K32-Pro has a Real Time Clock (RTC) to maintain time, a temperature sensor, input voltage sensors, an OLED display with navigation push buttons, three powered USB ports, onboard sound, socket for FM transmitter, and a Gigabit Ethernet port (wired via USB2 so roughly 300Mb/s speed).
-
-
The cape provides:
- 32 pixel connectors in banks for four.
- Each bank of four can use any voltage from 5V – 24V
- Each string can provide up to 5A of power
- 8 RJ45 connections for 32 more strings via differential receivers
- 2 RJ45 connections for DMX/LOR
- 3 USB-A connectors for WIFIi adapters or other USB devices
- On-board pcm5102 DAC and headphone jack for sound
- Header to attach FM transmitter
- Gigabit Ethernet Connector
- Expansion header pins providing 8 gpio outputs and access to I2C bus, 3.3v power, and ground
- Temperature sensor.
- Real Time Clock
- 5v 4-Pin PWM Cooling Fan Connector
- 8 GPIO pins exposed to the user to allow adding additional buttons, proximity sensors, etc… to invoke various effects and functionality.
- 32 pixel connectors in banks for four.
-
You will need:
- PocketBeagle 2 – the K32-Pro will NOT work with a PocketBeagle 1
- The K32 requires at least FPP 9.0 to be fully functional. The latest FPP images can always be found at https://github.com/FalconChristmas/fpp/releases/
- Power supply
- ws281x compatible pixels
-
