Hilights

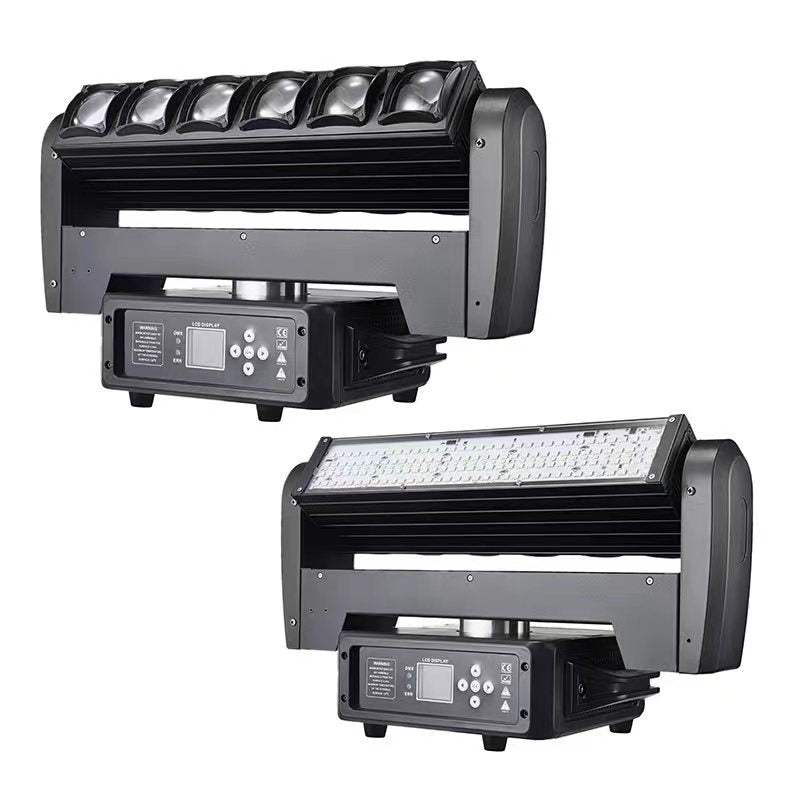

This versatile fixture combines beam, wash, and strobe effects in one powerful unit, equipped with a front-facing 6x40W RGBW 4-in-1 LED and a dynamic backside matrix of 35x1W Yellow + 140x0.3W RGB LEDs.

Featuring pixel control on both sides (6 individual front pixels + 14-section rear pixel mapping), it delivers rich color effects and dynamic visual impact. The motorized zoom range of 3.8° to 50° enables tight beams and wide washes for maximum versatility.

Supports infinite 360° pan/tilt rotation, high-speed strobe (up to 20Hz), and smooth 0–100% electronic dimming.
Control options include DMX (23/28/63 CH) with PowerCON and 3-pin XLR in/out.

Ideal for concerts, stage productions, and immersive visual shows. Built for professionals demanding performance, flexibility, and durability.

Specification

Input voltage range: 100-240 V, 50/60 Hz
Power consumption:300W
LED Source: Front: 6x 40W RGBW 4in1 LED;
Back 35x 1W Yellow LED +140x 0.3W RGB 3in1 LED
LED Control Feature:
Front side: 6pcs RGBW LED each Pixel control;
Back side: 14 sections pixel control, each section 9pcs led.
Zoom: 3.8°- 50°                                                      Channel: 23CH/28CH/63CH
LED life: 50.000 hours
Beam , Wash, Strobe,, Multiple Effect, Pan Til,t infinite rotating
Electronic strobe effect with variable speed up to 20 Hz
High resolution electronic dimming: 0 - 100%
Pan/Tilt movement: 360-degree infinite rotating

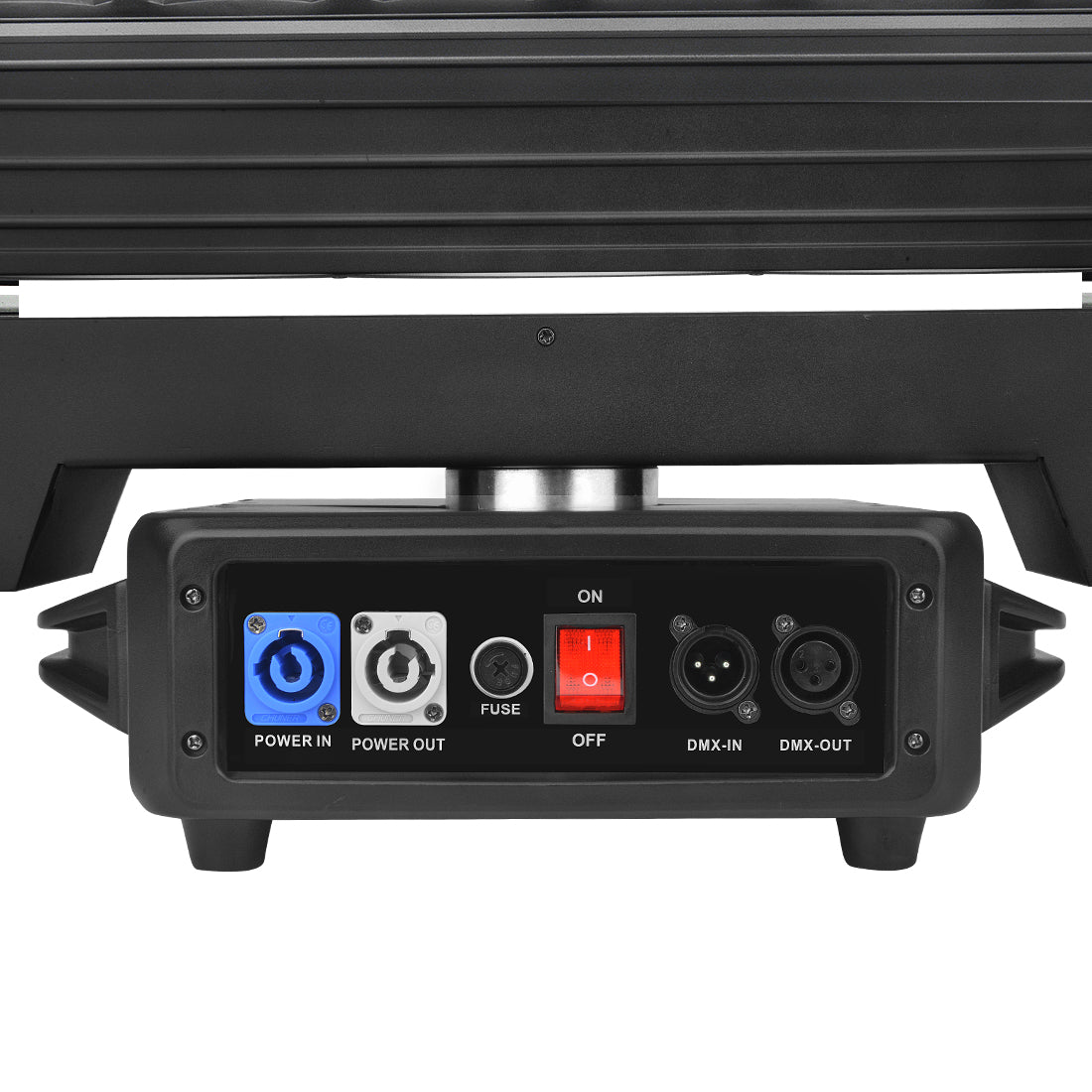

Power connector: Powercon in/out
DMX connector: 3-pin XLR in/out
Net weight: 13kg
