• 1-Port Pixel Controller (upgradable to 8-Port w/ the Differential Module)
  • Revision 1.0
  • Wi-Fi support (2.4GHz only)
  • ESP32 Based
  • Expansion header (Ethernet, Differential, SD Card, 4-Button, IR Receiver and Audio-Reactive Modules available, sold separately)
  • WLED 0.15.0 pre-installed
  • XLights Compatible
  • 5V Data Signal, 33 ohms
  • Modular and repairable
  • Supports 24v, 12v & 5v pixels and strip (3 pin only, no CLK)
  • Runs WLED software, pre-installed
  • Dimensions: 33mm x 98mm (roughly 1.5" x 4")
  • 5A MAX per output. (5A Total)
    (Over 200 LEDs per output should only exceeded only with proper voltage injection or reduced brightness)

  • NOTE - Due to size constraints,. there is NO REVERSE POLARITY PROTECTION on the Solo2Go - Always double-check your power wiring!!! Reversed polarity will damage your controller and your lights.

  • How many pixels can it support?
    The ESP32 can calculate about 65k-85k LEDs per second (that means 1000 LEDs @~70fps, 2000 LEDs @~35fps, 4000 LEDs @~18fps)

    * For excellent performance, it is recommended to use 400 pixels/output  (RECOMMENDED)

    *For very good performance, it is recommended to use 600pixels/output
    *For good performance, you can use 800 pixels/output
    *For okay performance, you can use 1000 pixels/output


    Output
    Port1: GPIO2

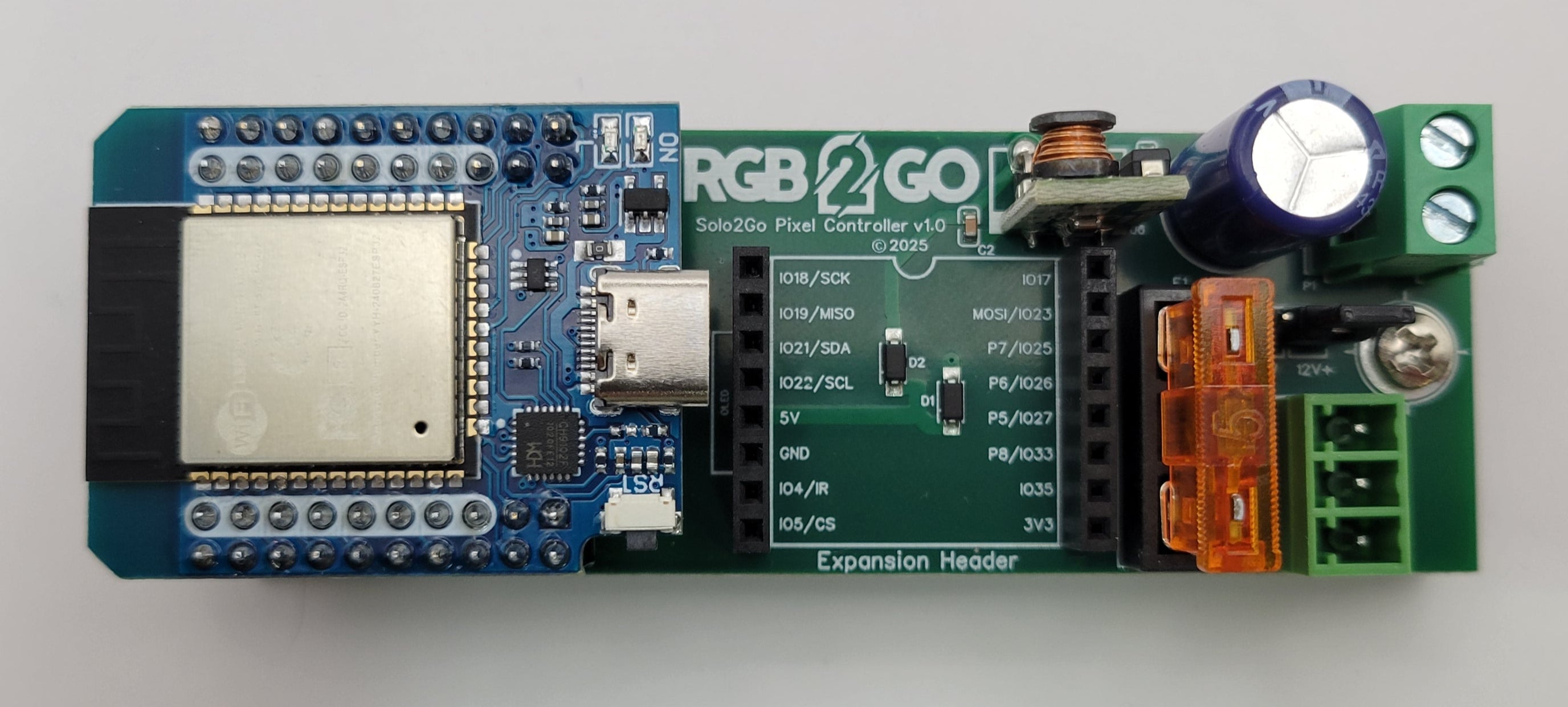

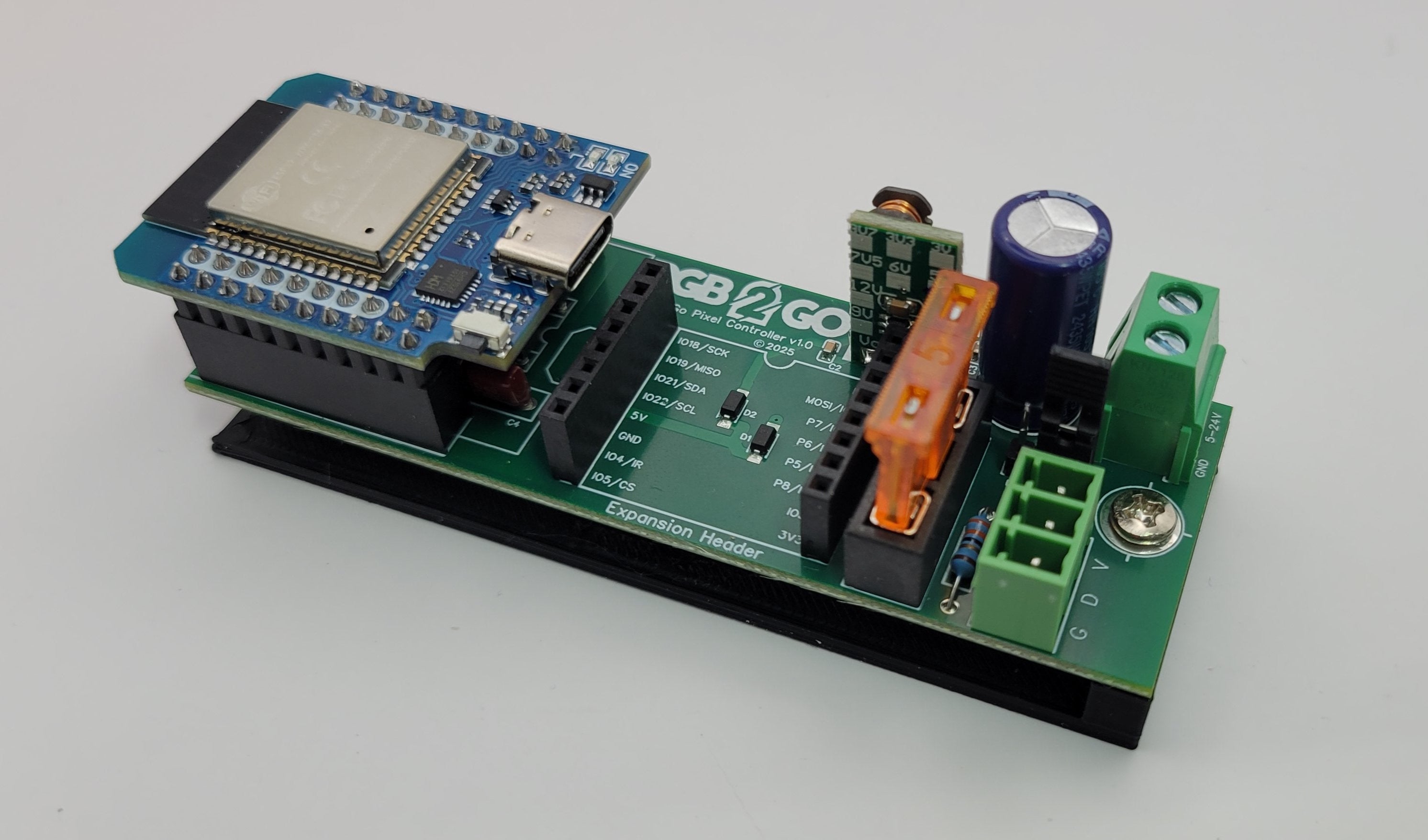

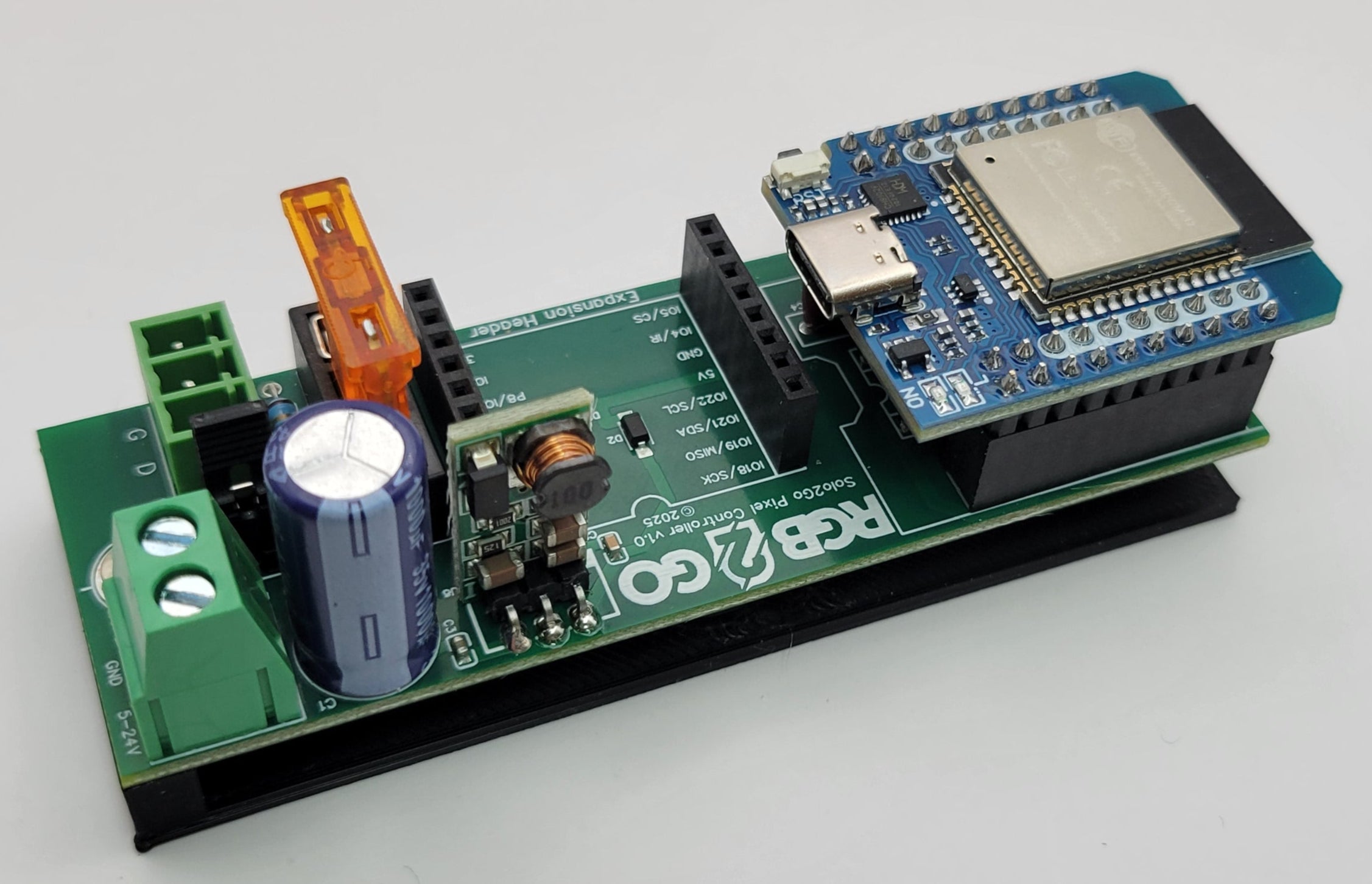

Solo2Go 1-Port Wi-Fi Pixel Controller

$29.00 $31.99

What This Is For

The brain of your show. Controllers send the data signal to your pixels, telling each LED what color to be at any moment. Choose port count based on how many pixels you're running — and if you're not sure, give us a call.
