• Our new design to allows you to use a regular pixel strand or icicle strand

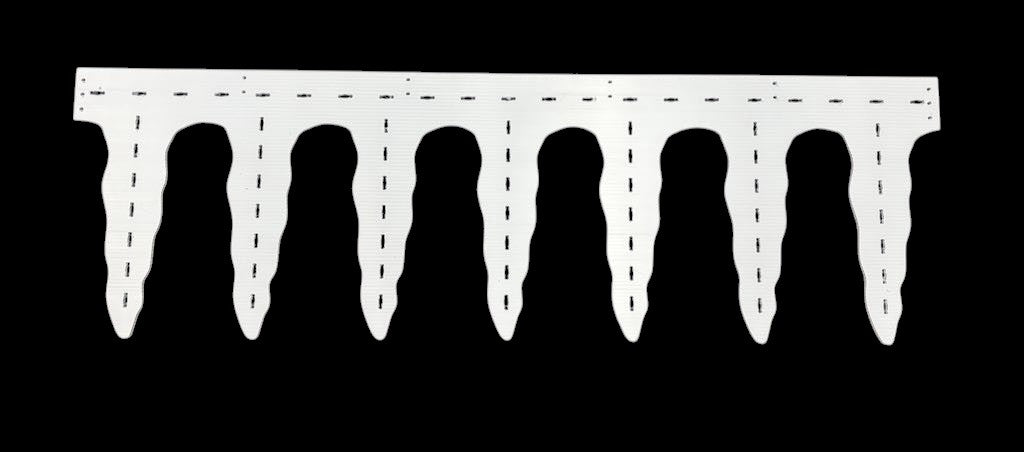

• Total nodes are 150 per 7.5 foot section which ships in two pieces (one 8 icicle section & one 7 icicle section) with zip tie holes for EZ installs - Mounting holes for either roof clips or attach to emt or pvc
• Roofline is 45 nodes and spacing is at 2"
• 15 Icicle drops @ 6" apart - icicle spacing is 1.5"

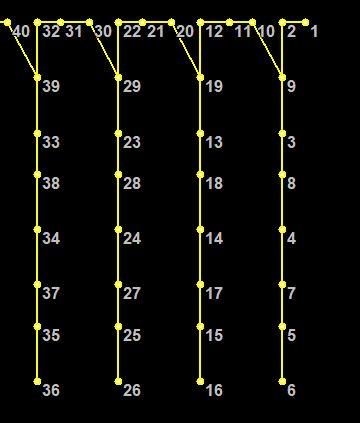

• 7 nodes per icicle plus 1 for the roofline
• Available in 6mm or 10mm / white or black coroplast

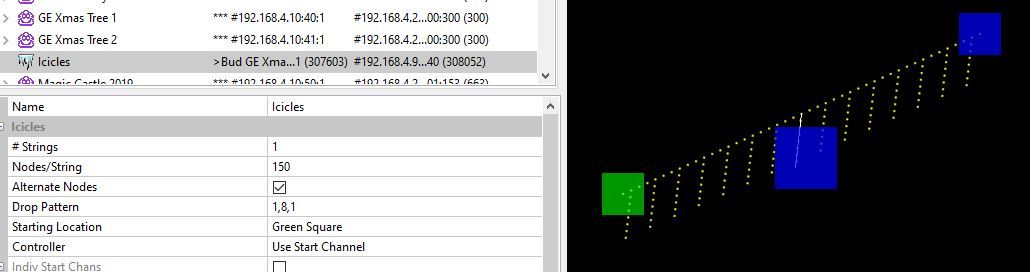

• Uses the native model in xLights - In the layout tab there is a bar of native models across the top. Click on the icicle one and then drag a box in the screen below to deploy it. Then once it is there you can click on it and on the left select 1 string of 150 nodes. Check the alternating node box and change the layers or drop pattern to 1,8,1
• 100% Designed and made in the USA

© 2019 Jason Gilbert All Rights Reserved

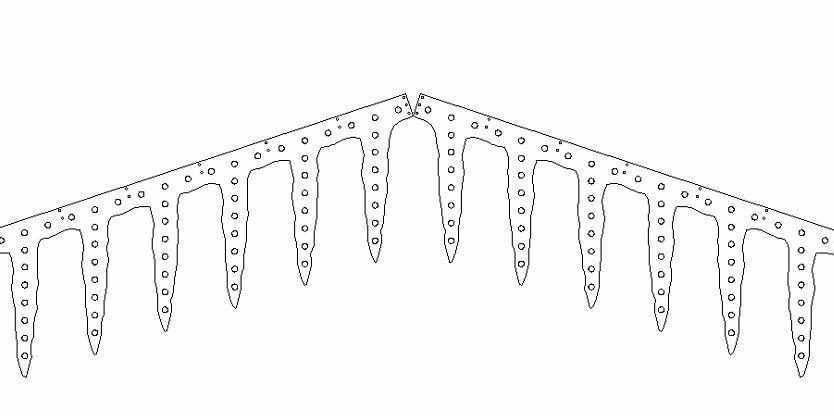

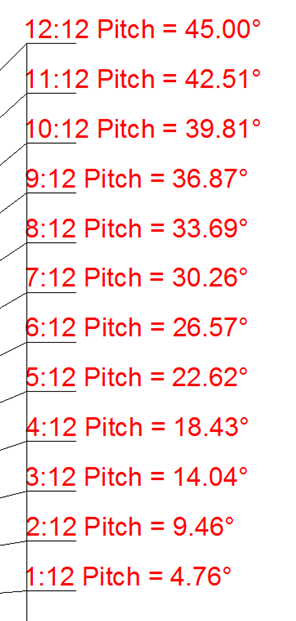

If ordering for a pitched roof please measure your roofline pitch using the following method.
