Note: Working well with the 0.14.4 firmware, but NOT the 0.15 firmware yet.
REQUIRES a Solo2Go, Tetra2Go, or Octa2Go - Sold Separately
(NOT compatible with the Duo2Go controller)
Blue and Yellow, 0.96 inch OLED

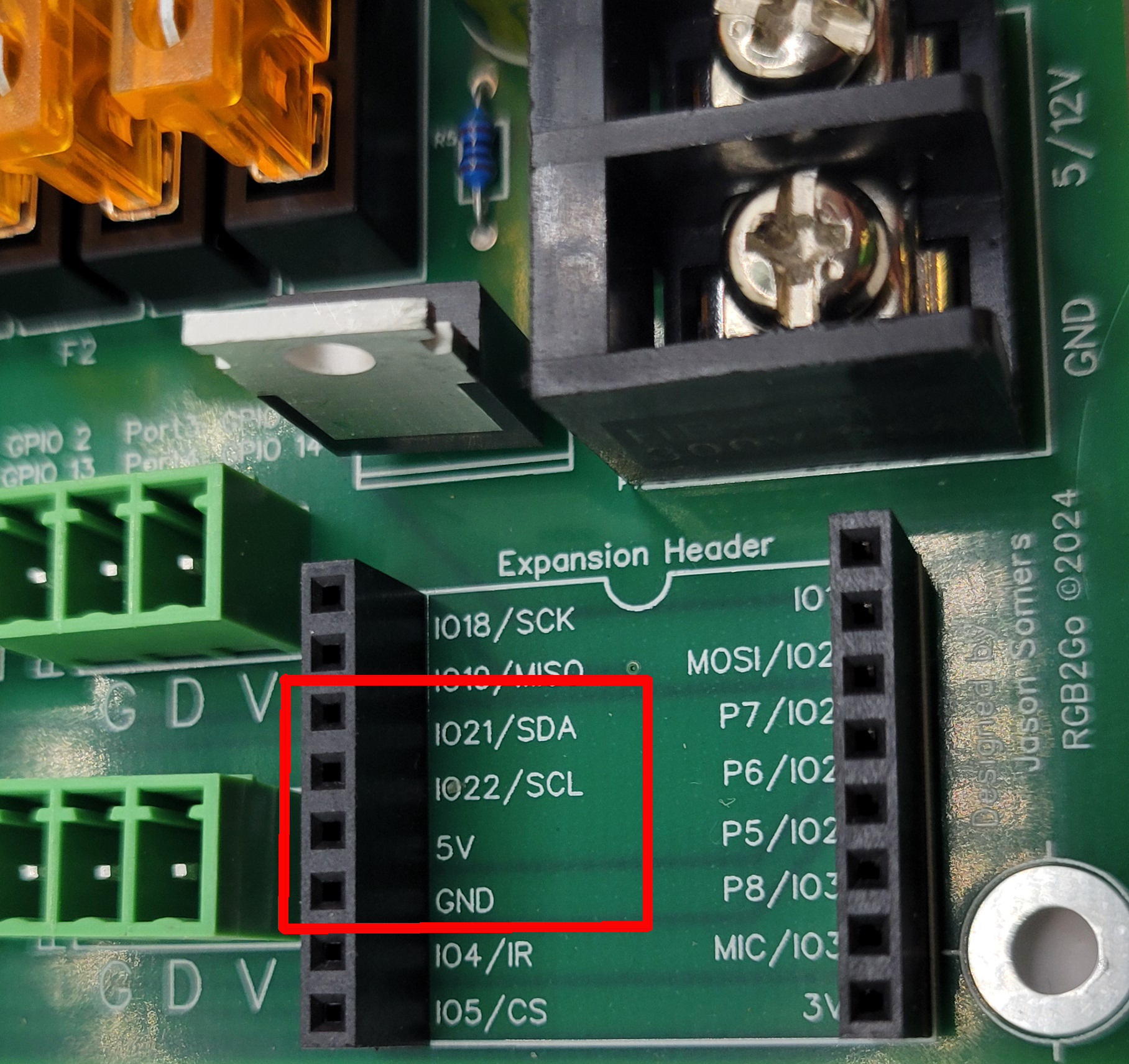

4-pin I2C Interface
(GND, VCC, SCL, SDA)
Resolution is 128 x 64;
View angle is more than 160 degrees;
Supporting voltage is from 3.3V to 5V DC;
Power consumption during normal operation is 0.04W, full screen lit is 0.08W
Please note that this product is NOT compatible with Falcon controllers. They use a 7-pin SPI OLED Display.

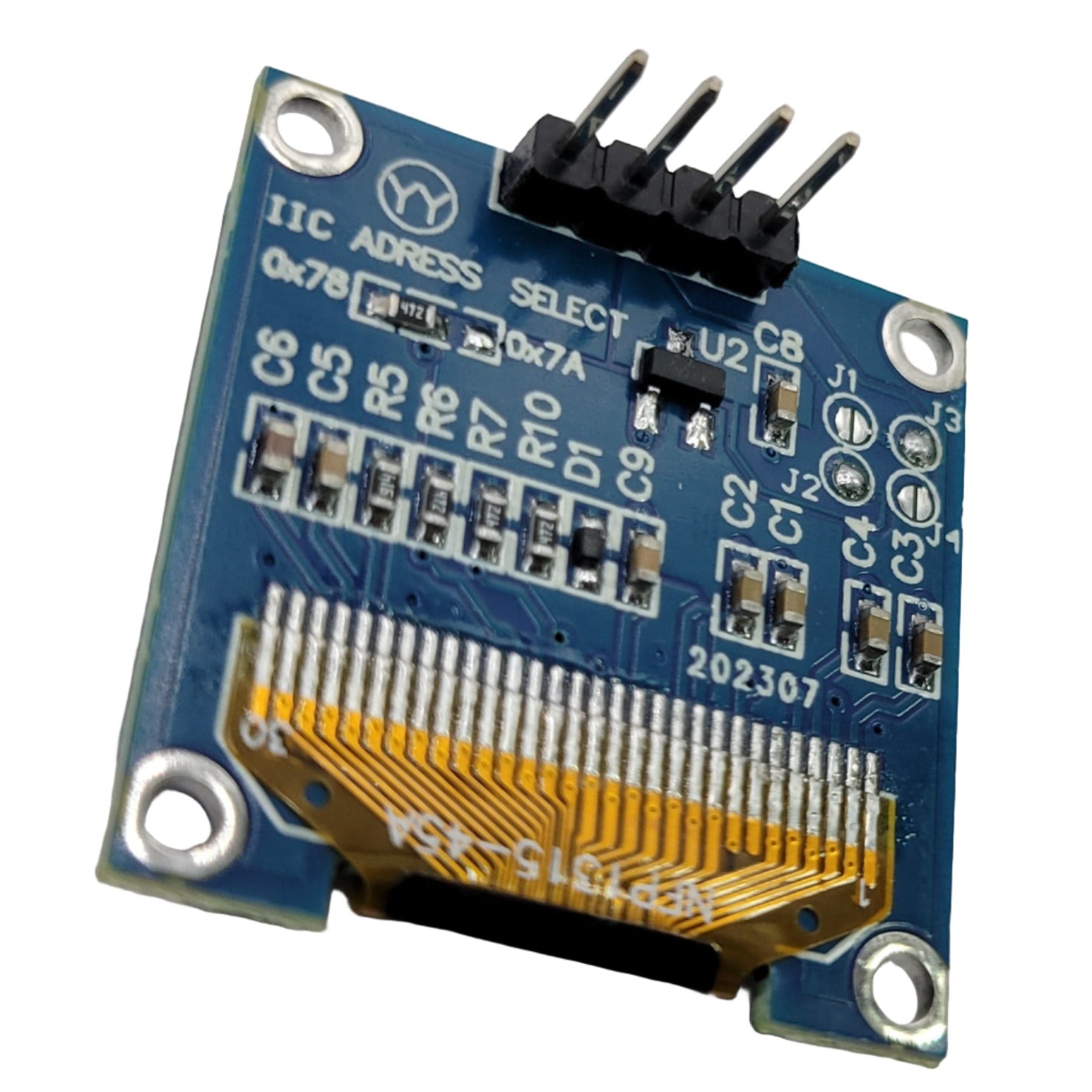

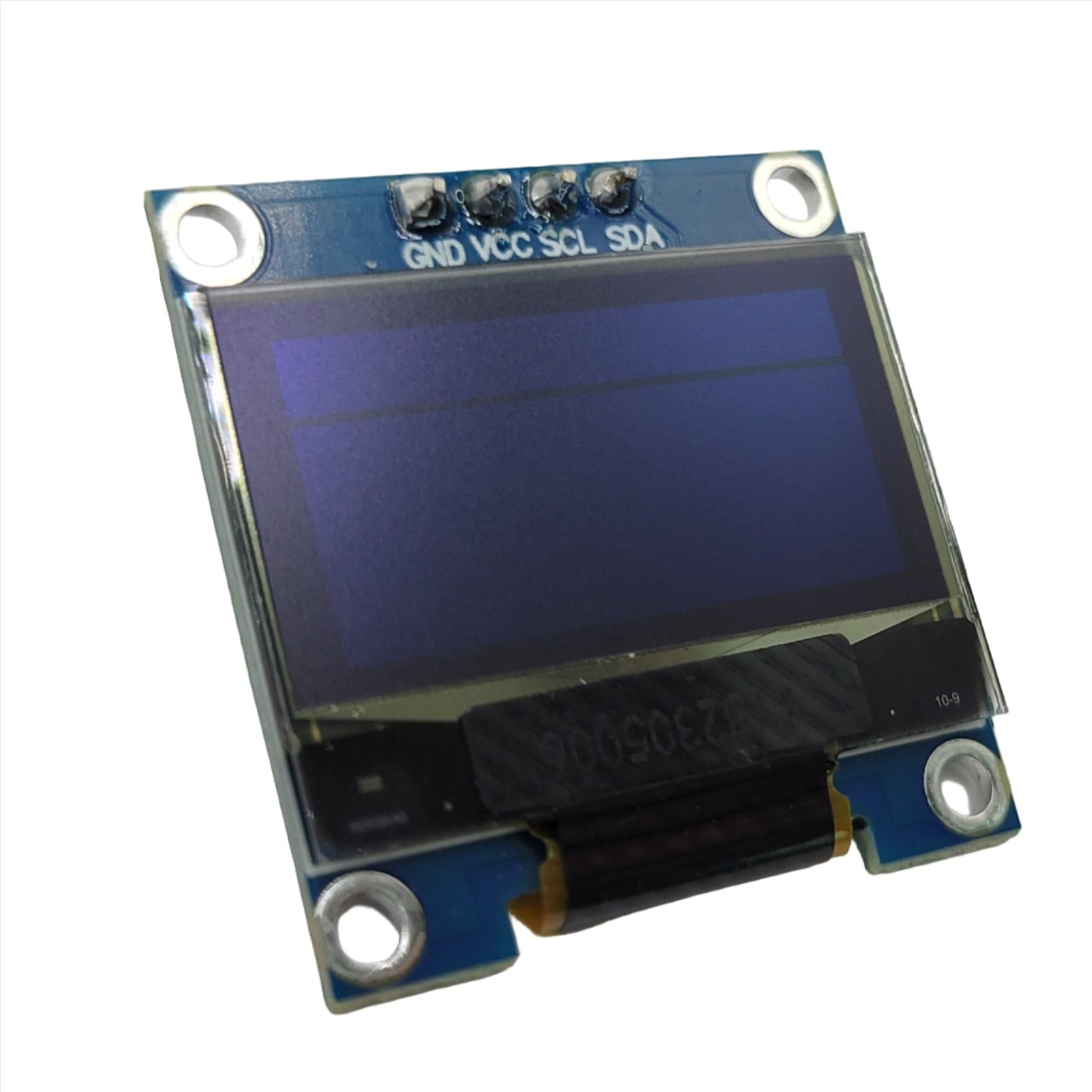

OLED Display Module
What This Is For

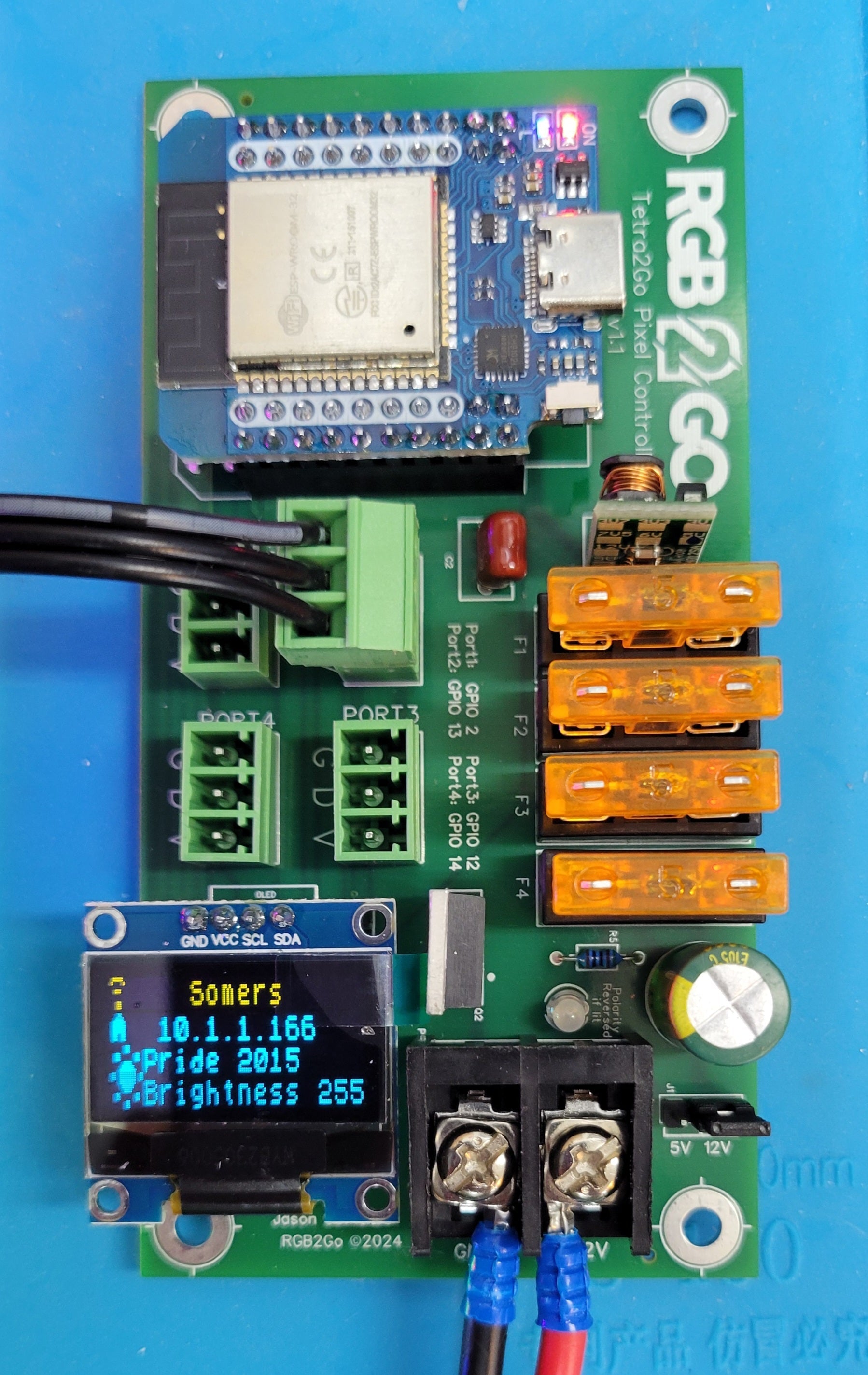

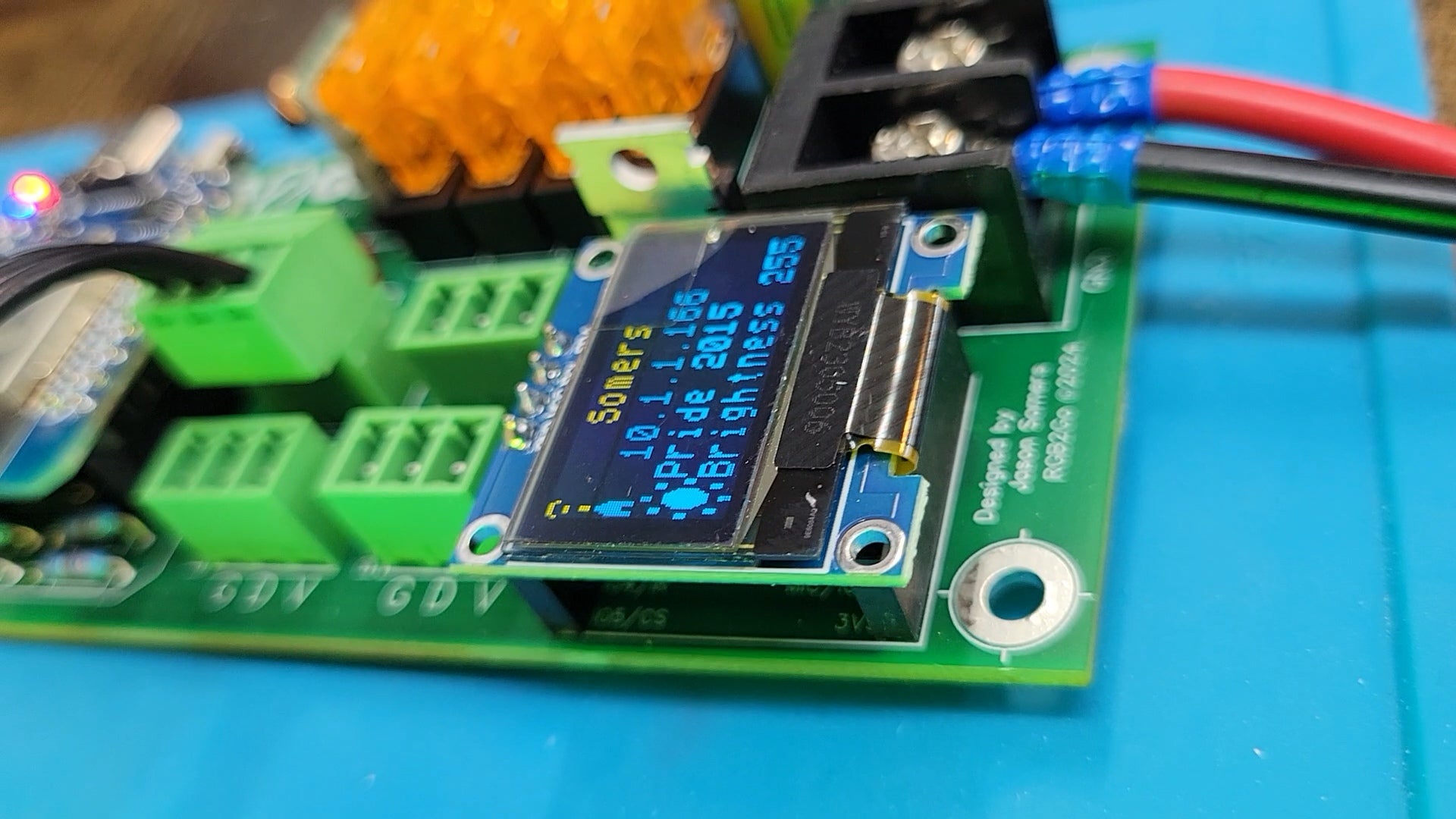

An OLED status display module for compatible RGB2Go controller builds. It is an add-on display, with firmware and controller compatibility that must be checked for the intended installation.
JR Recommends
Confirm the controller model and supported firmware before ordering. This display is not the same interface as a Falcon OLED module, so do not choose it by screen size alone.
