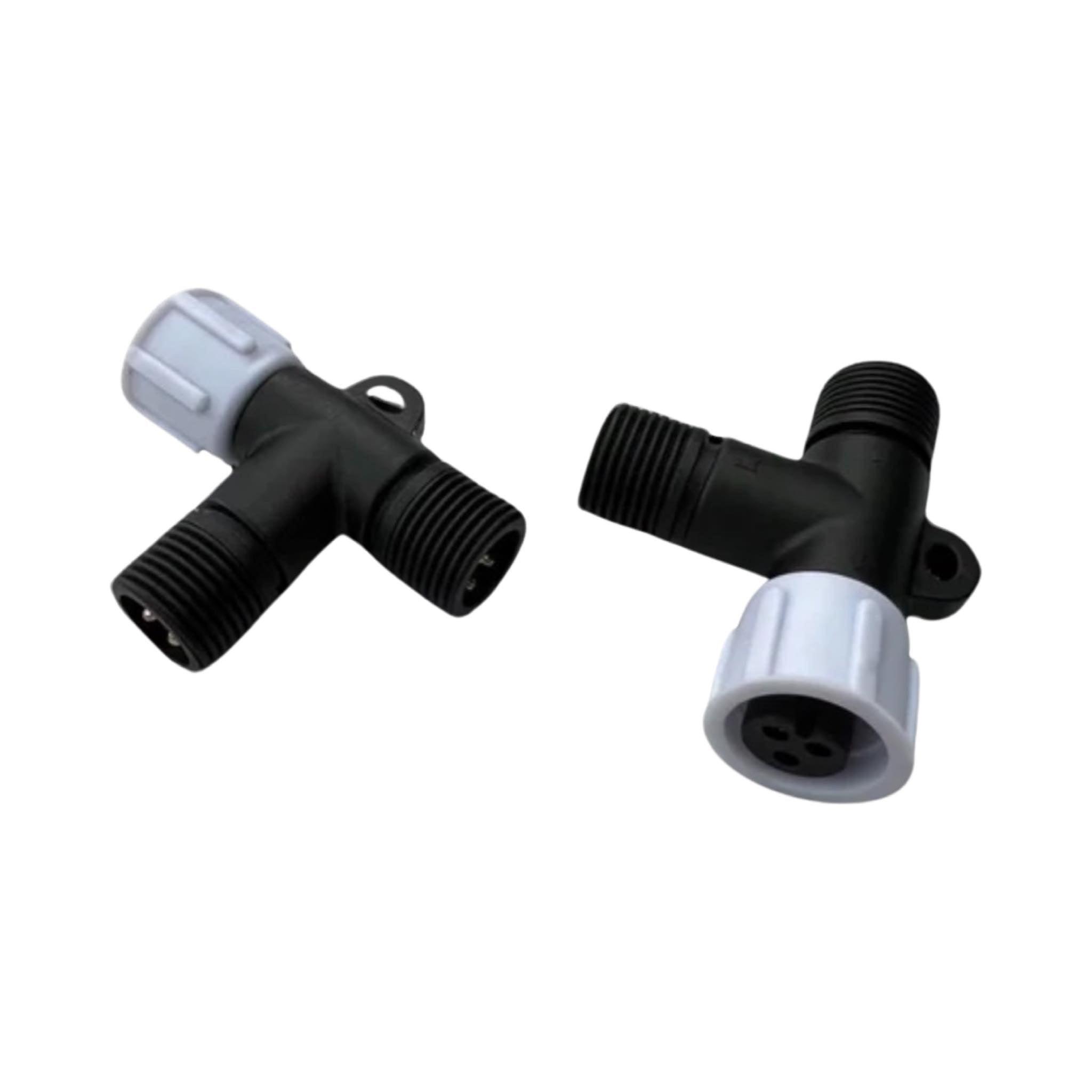

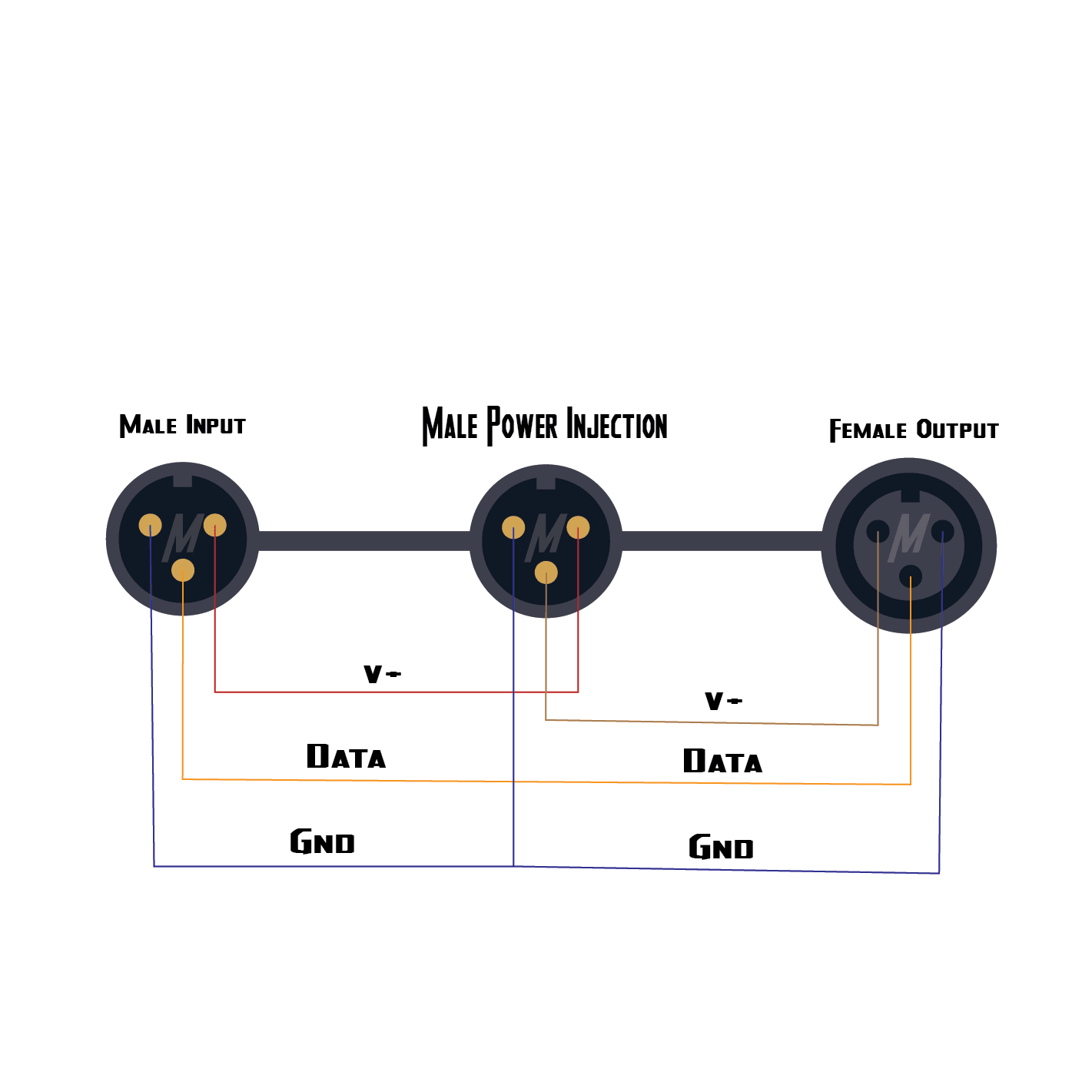

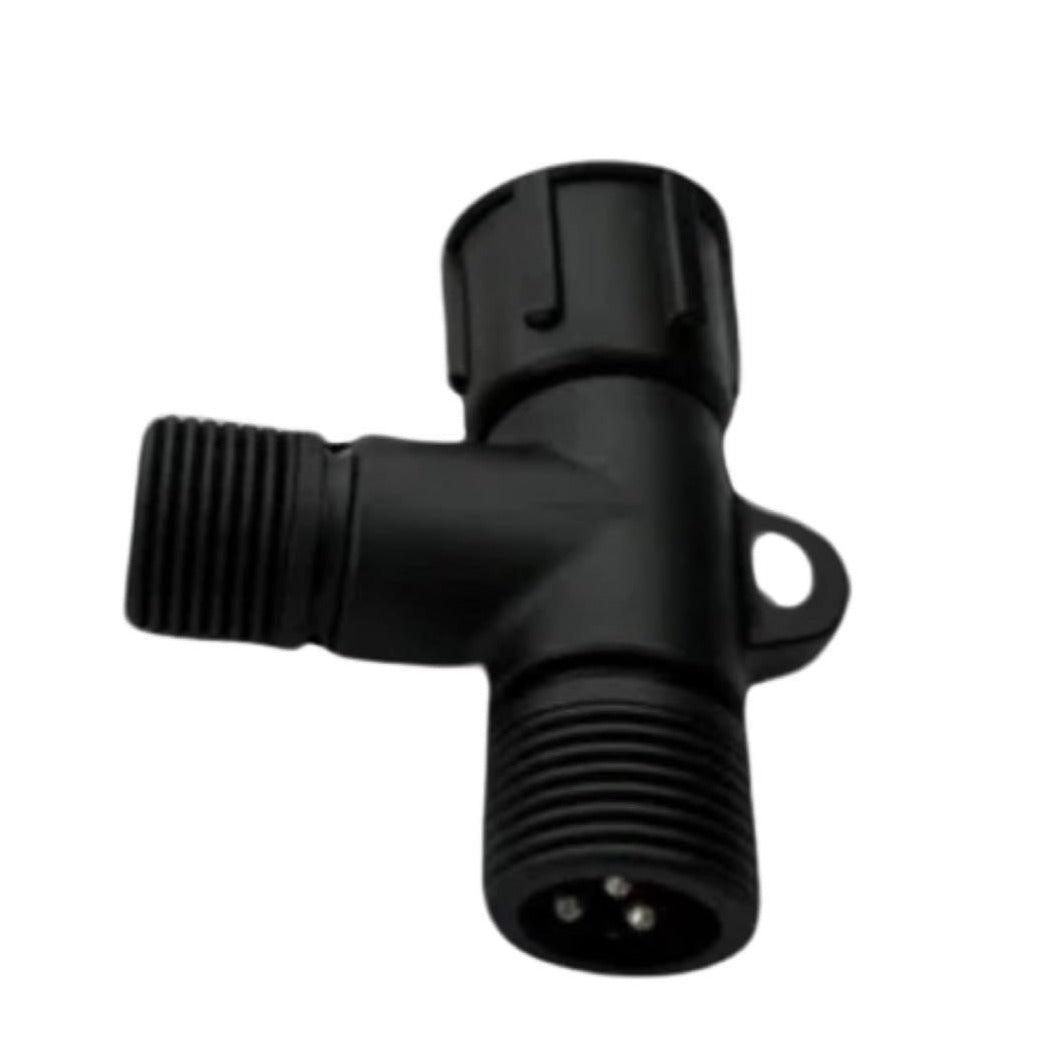

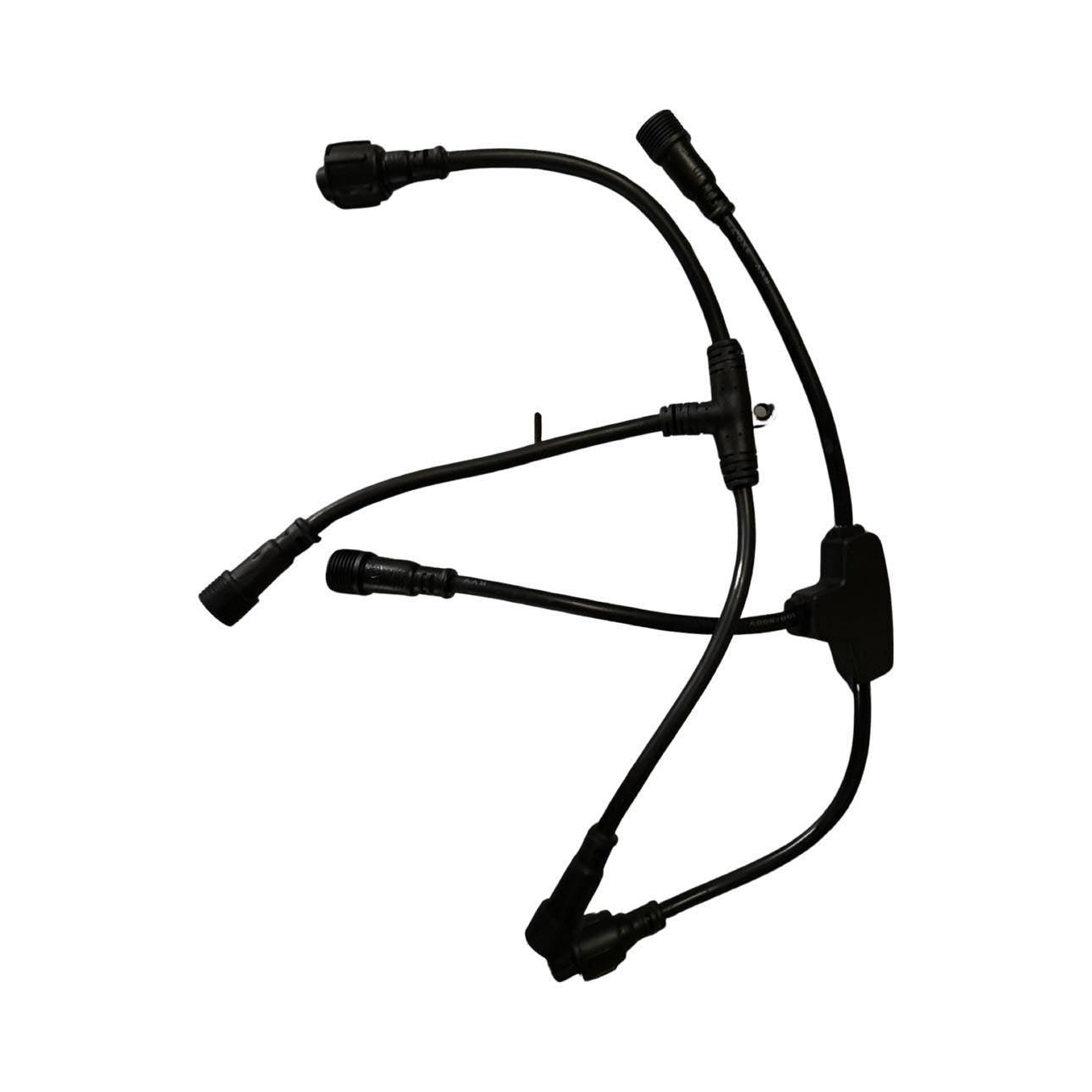

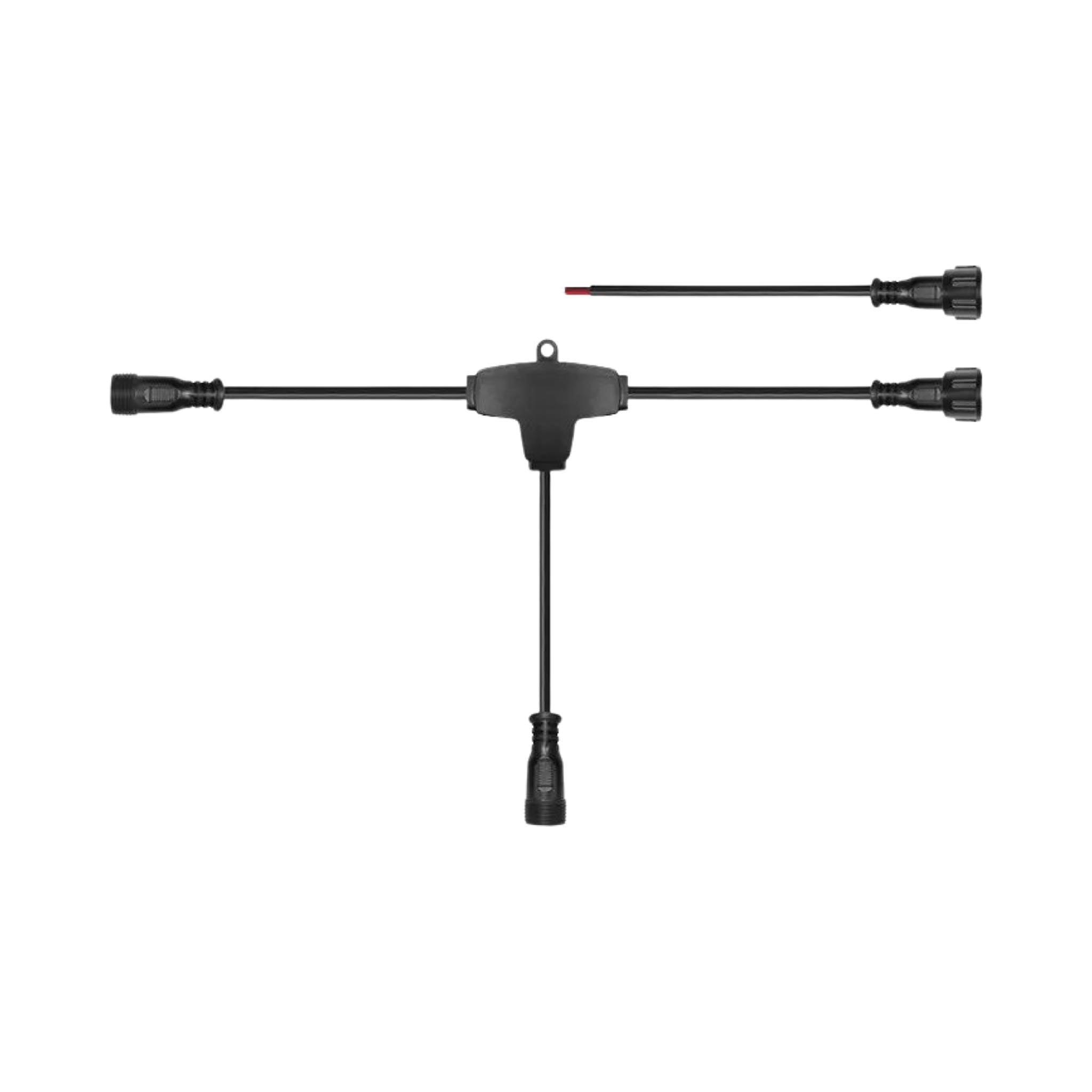

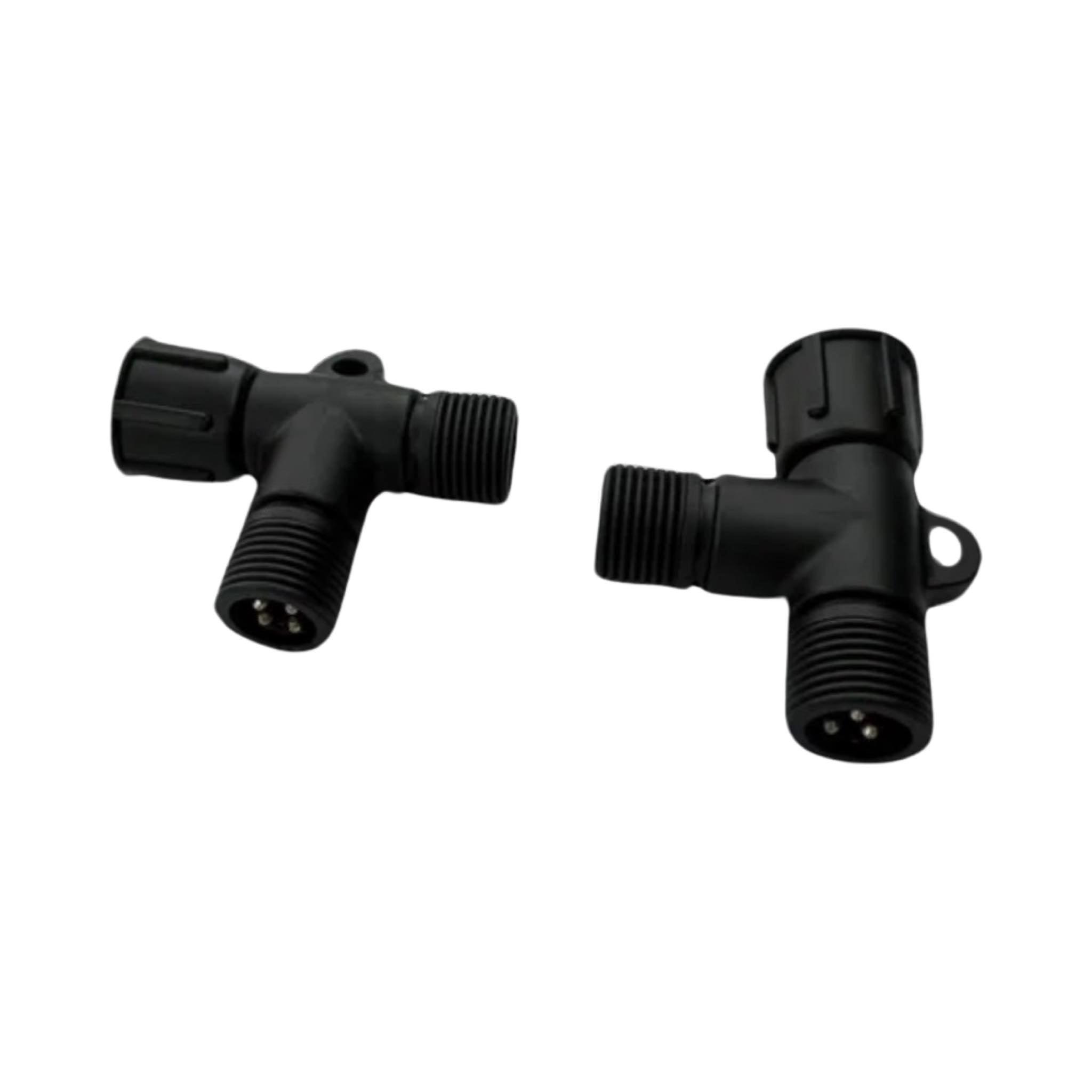

The Power Injection T's 5 Pack includes 3 pin xConnect connections on both ends, suitable for standard 3 core extensions. Each T has 1 female and 2 male ends, providing bidirectional power. The MINI 3-3-3 T's are similar, while the MINI 3-2-3 T's have a 3 pin xConnect connection on one end and a 2 core xConnect male connector on the injection side. 3-2-3 NO POWER PASSTHROUGH T'S have the same setup as standard 3-2-3 T's, except for the positive pin being disconnected on the pixel input side (male end). This is required whenever power injecting from a different source than the power supply before the T. The screw cap on these T's is white, making it easy to distinguish them as "no power passthrough" T's.
Power Injection T’s 5 Pack
What This Is For
Power-injection T cables add the selected power connection arrangement to a compatible pixel run. Options differ in connector style and whether positive power passes through the input.
JR Recommends
Choose the wiring arrangement before ordering. When using another power source, check isolation, common ground, and fusing against the system design; the no-power-passthrough version serves a specific purpose.
