Hilights

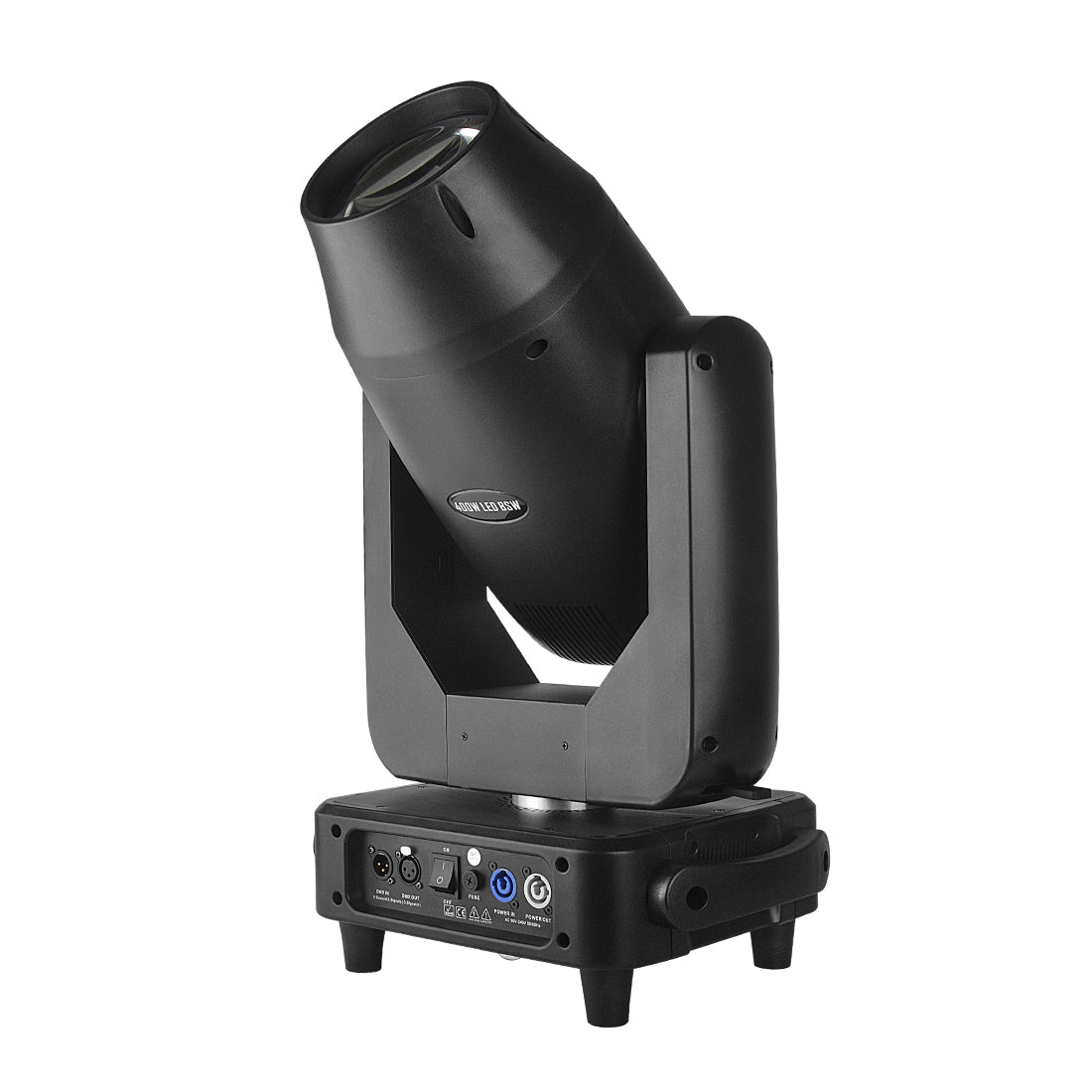

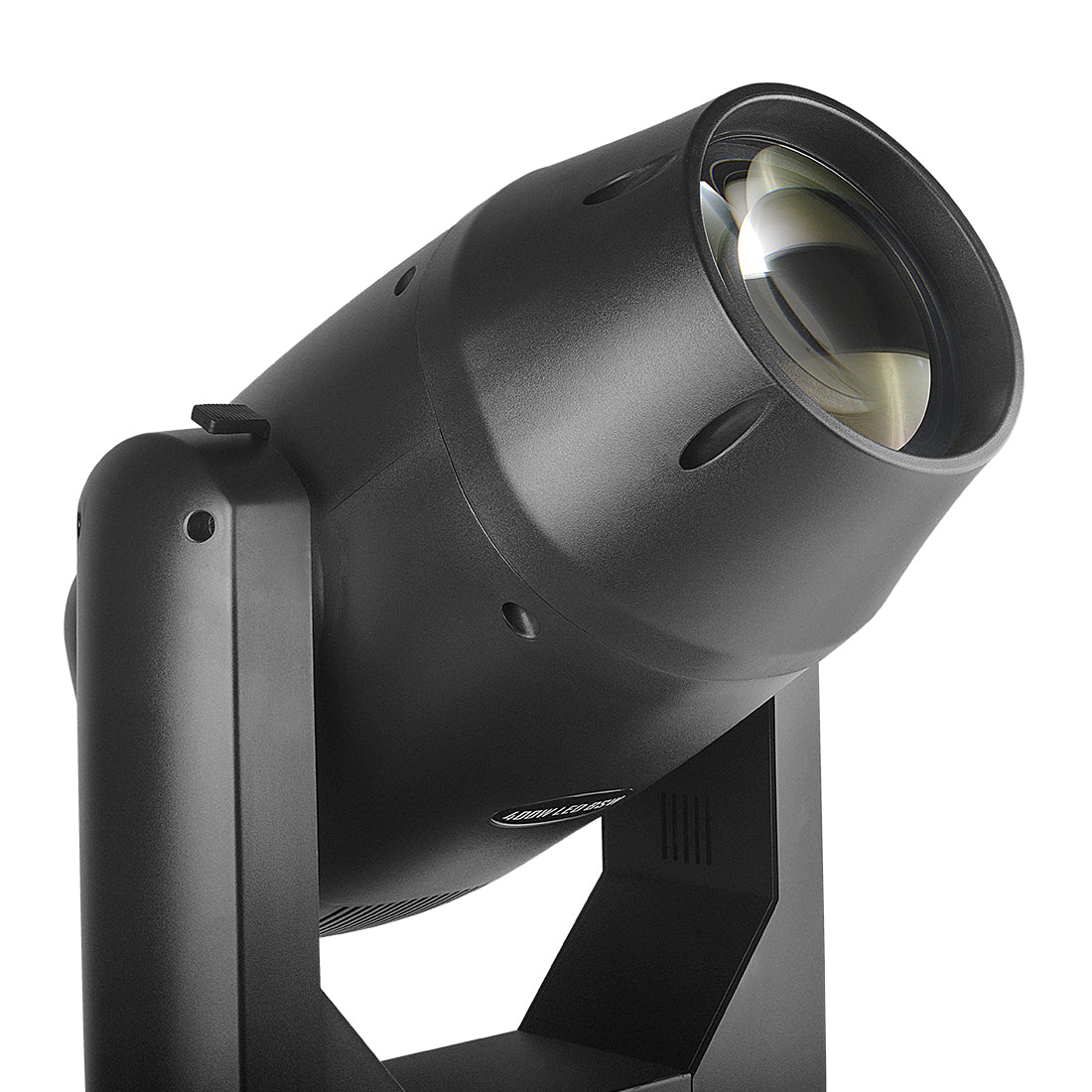

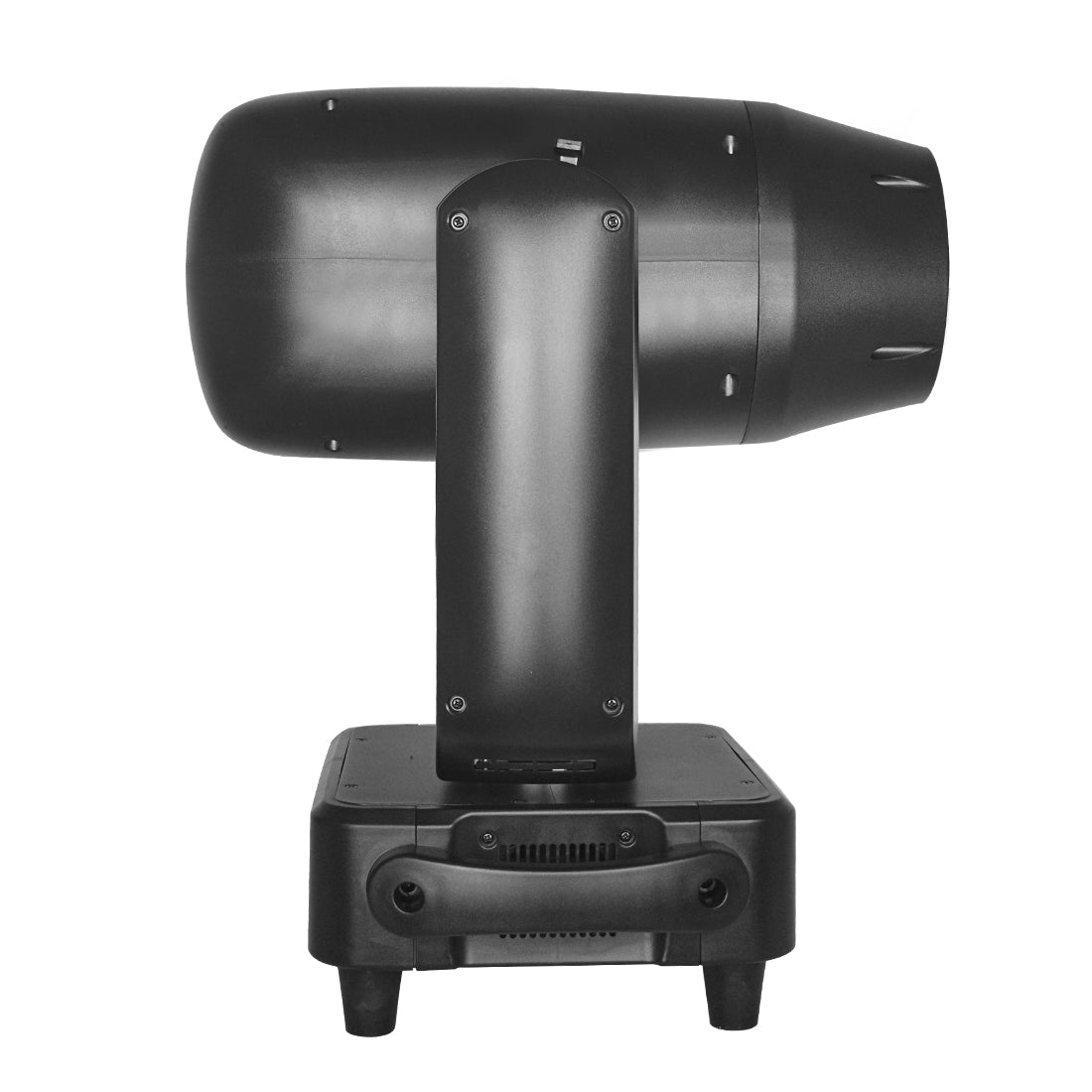

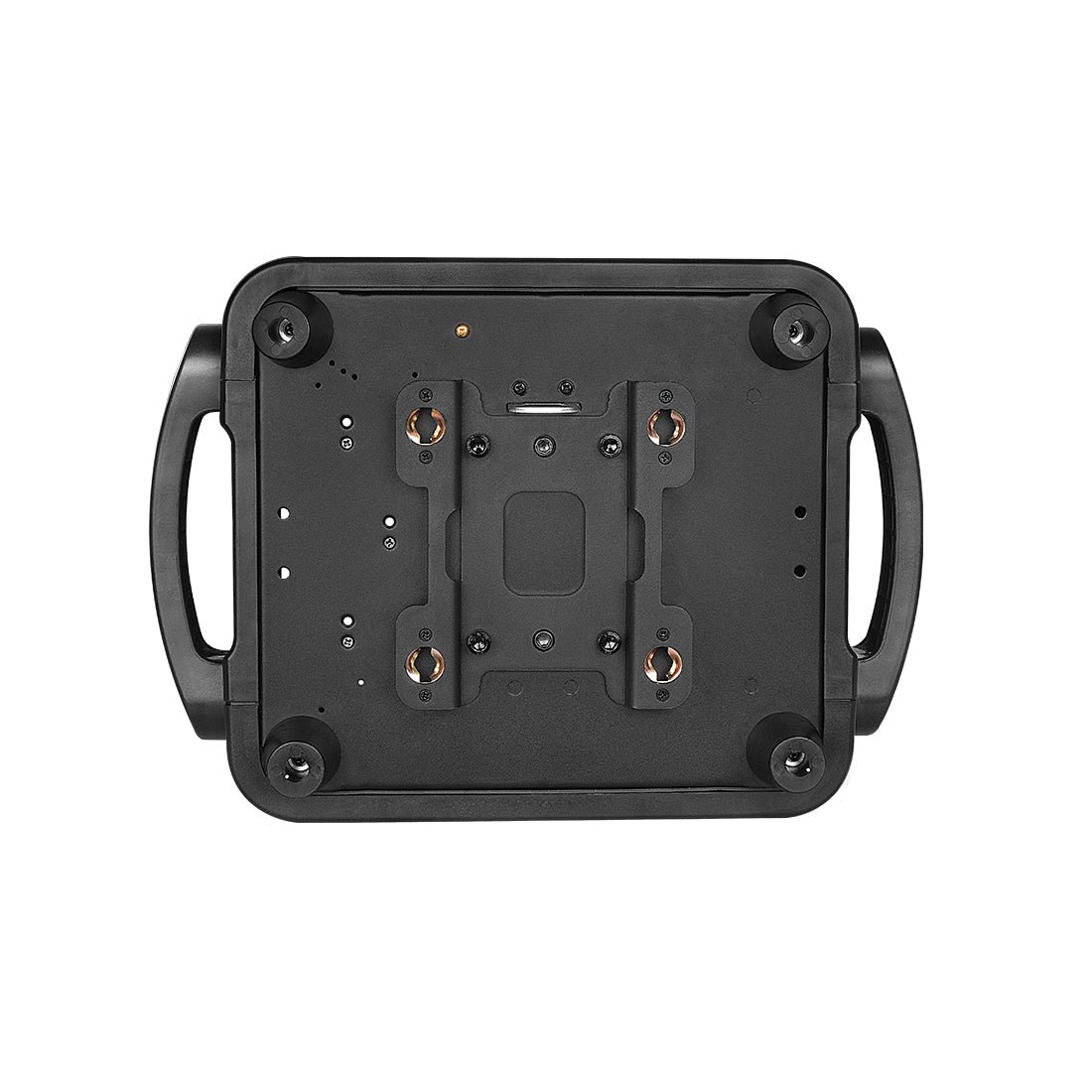

400W LED Moving Head Spot – High-Performance Fixture for Demanding Stage Applications
Engineered for precision, power, and versatility, this 400W LED spot delivers stunning brightness and creative flexibility, ideal for concerts, theaters, and large-scale productions.
Specification
-
Light Source: 400W LED module | 20,000-hour lifespan
-
Brightness: 120,000 lumens at 5 meters
-
Power: 500W | Voltage: AC90–240V, 50/60Hz
-
Pan/Tilt: 540°/270°, 16-bit precision, with auto electronic correction
-
Zoom: Motorized 4°–35° range for tight beams to wide washes
-
Focus: Linear focus from 4m to 50m
-
Dimming: Smooth 0–100% linear dimmer
-
Strobe: 0–30Hz variable strobe
-
Color System:
-
8 colors + white
-
Linear CMY + CTO color mixing
-
-
Gobos:
-
Fixed: 12 gobos + white
-
Rotating: 7 glass gobos, bi-directional rotation
-
-
Prism Effects: 8-facet and 6-facet prisms, independently rotatable
-
Frost: Independent frost for smooth, diffused output
-

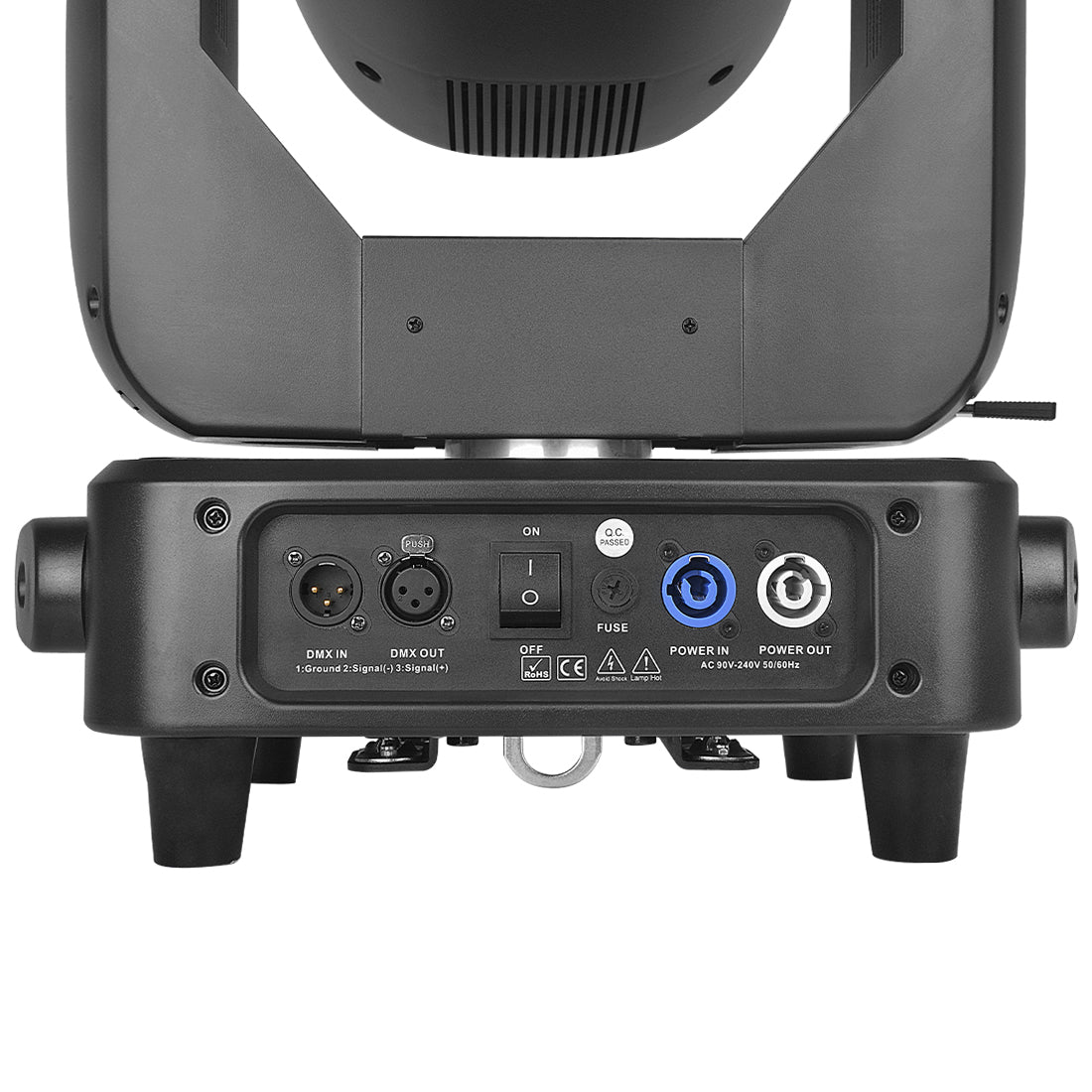

Control: 23 DMX channels, DMX512 & RDM compatible, software upgradeable
-

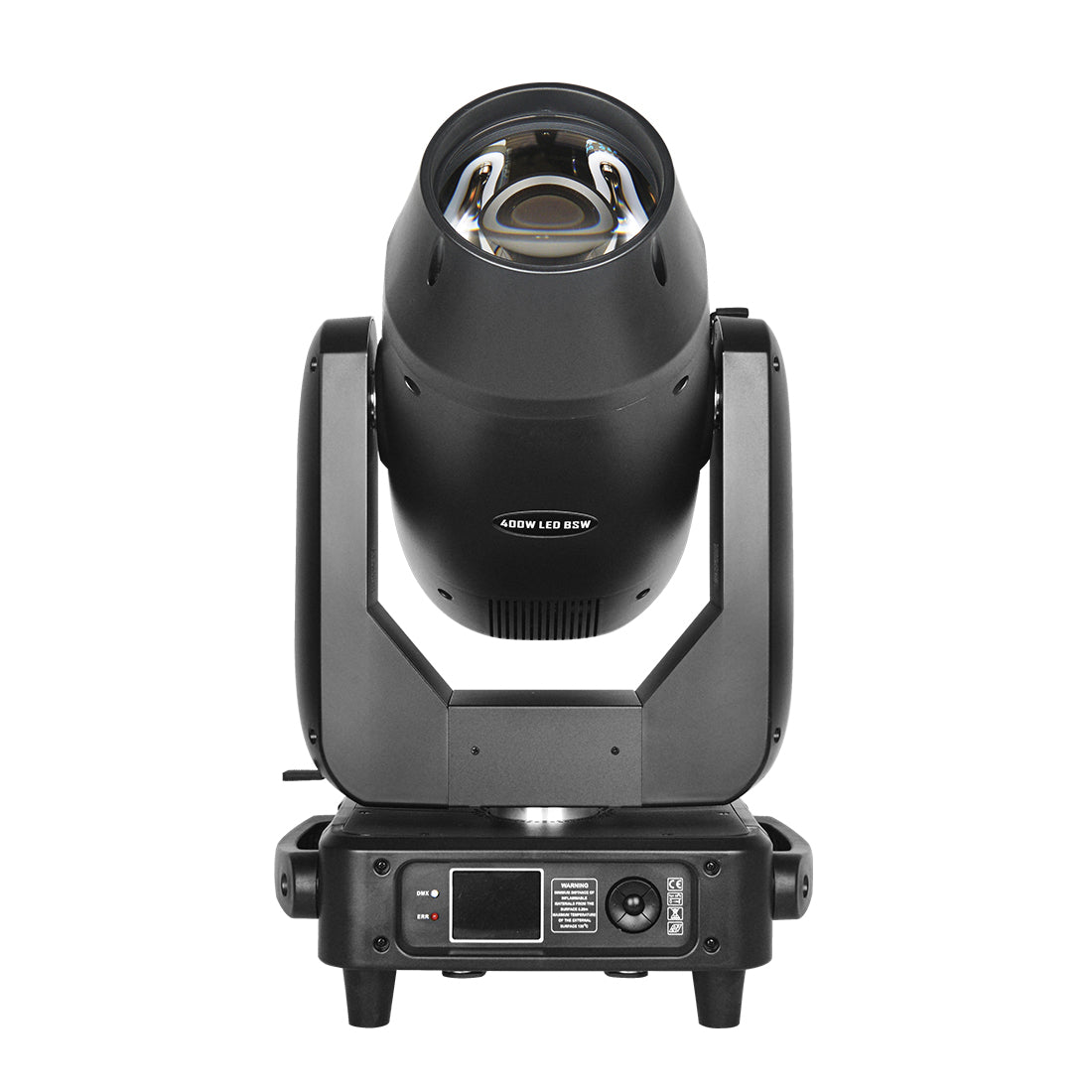

Display: 2.8” touch + key control, reversible bilingual interface
-
Cooling: Efficient axial fan cooling
-
IP Rating: IP20 | Operating Temp: -20°C to 40°C
Dimensions & Weight:
-
Fixture Size: 38×27×67 cm | Net Weight: 22.9 kg
-
Carton: 63×53×51 cm | Gross Weight: 26.5 kg
-
Flight Case (2pcs): 75×46×87 cm | Gross Weight: 76 kg
This fixture combines superior optics, advanced color mixing, and robust features to meet the creative demands of professional lighting designers.
