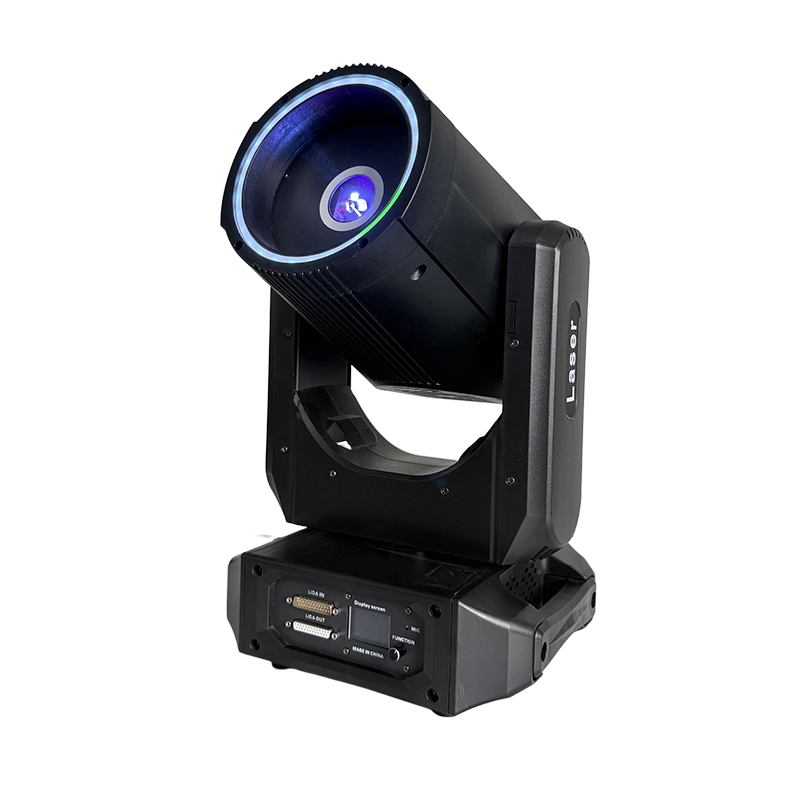

KL3 15W RGB Moving Head Laser – Dynamic Animation & Unmatched Flexibility

Elevate your lighting show beyond static beams with the KL3 15W RGB Moving Head Laser. This powerful fixture combines the intense, high-definition output of a 15W RGB laser with the dynamic motion of a moving head, creating a truly immersive experience. Unlike fixed laser lights, its full 540° horizontal and 270° vertical rotation allows it to actively chase the focus of the venue, projecting crisp animations anywhere you command.

The robust 15W laser engine delivers vibrant, brilliant beams that ensure your 256 pre-programmed animation patterns stand out with stunning clarity. For added impact, the integrated LED wash light strip surrounds the laser output with a halo of color, enhancing the visual depth and creating a larger-than-life effect.

Take full control via DMX512, sound activation, or advanced ILDA software (like Pangolin) for custom designs. With features like scanning system protection and an automatic electronic switch, the KL3 is both a creative powerhouse and a reliable professional choice for stages, clubs, and events.

Specification

Rated voltage: AC100-240V ，50/60Hz
Shaking head laser+LED Strip
Laser power: RGB 15W
Laser light source: Red 4w/638nm Green 5w/525nm Blue 6w/447nm
Laser pattern: 256 laser animation patterns
Modulation signal: TTL modulation (analog modulation)
Scanning system: galvanometer scanning 30KPPS
Scanning angle: ±20°
Horizontal: 540°  Vertical: 270°
LED washing configuration: One-layer light strip
Control method: DMX512， Voice control, self-propelled, computer ILDA interface, Ethernet Art Net
Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Phoenix.
The ILDA control adopts an automatic electronic transfer switch, which has scanning system error protection and laser shutdown protection.
Protection level: IP20
Bare lamp size: 31 * 25 * 54cm
Net weight: 12kg
