Hilights

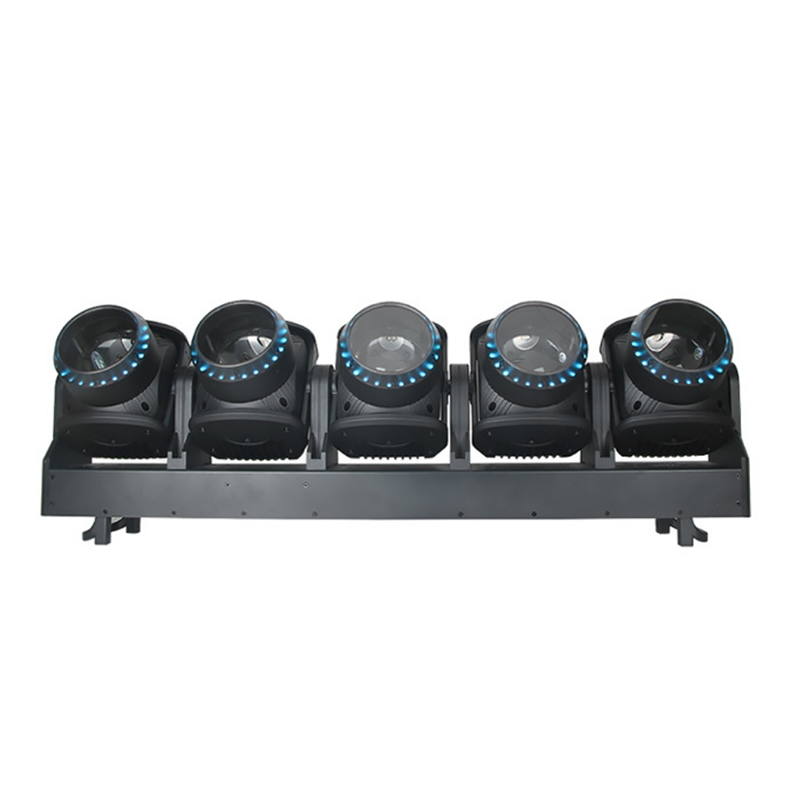

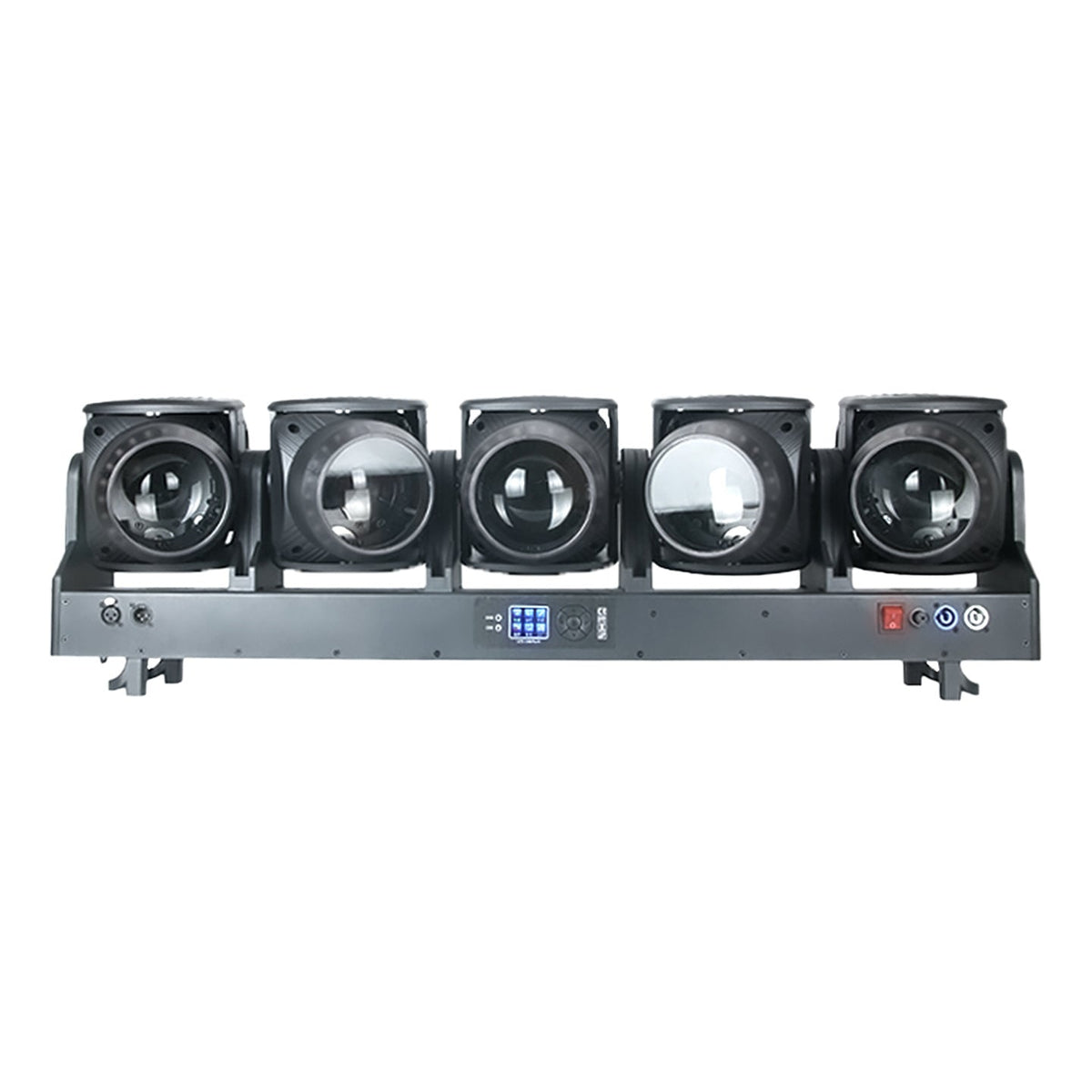

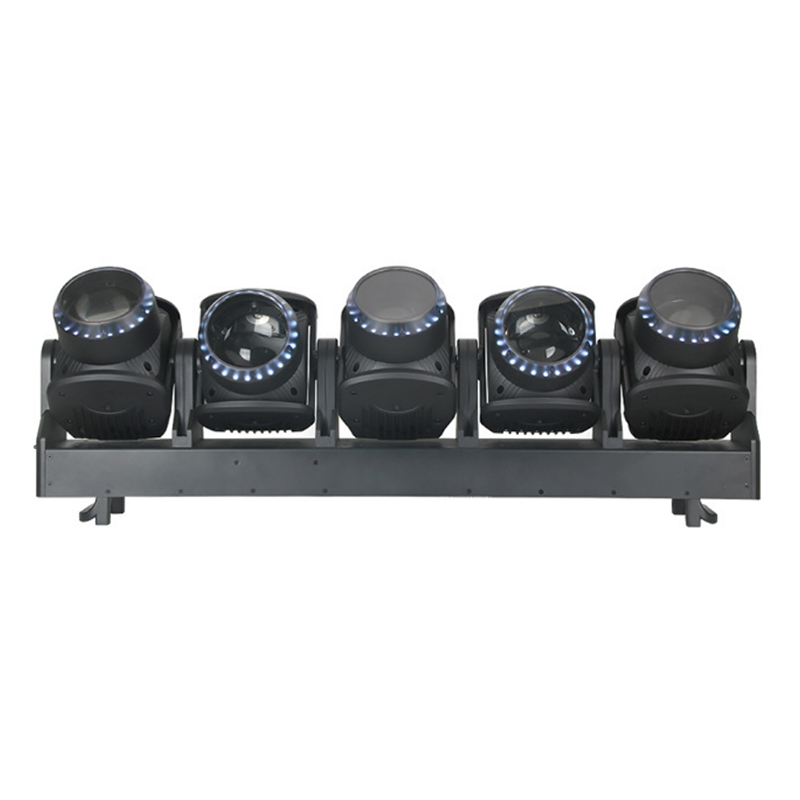

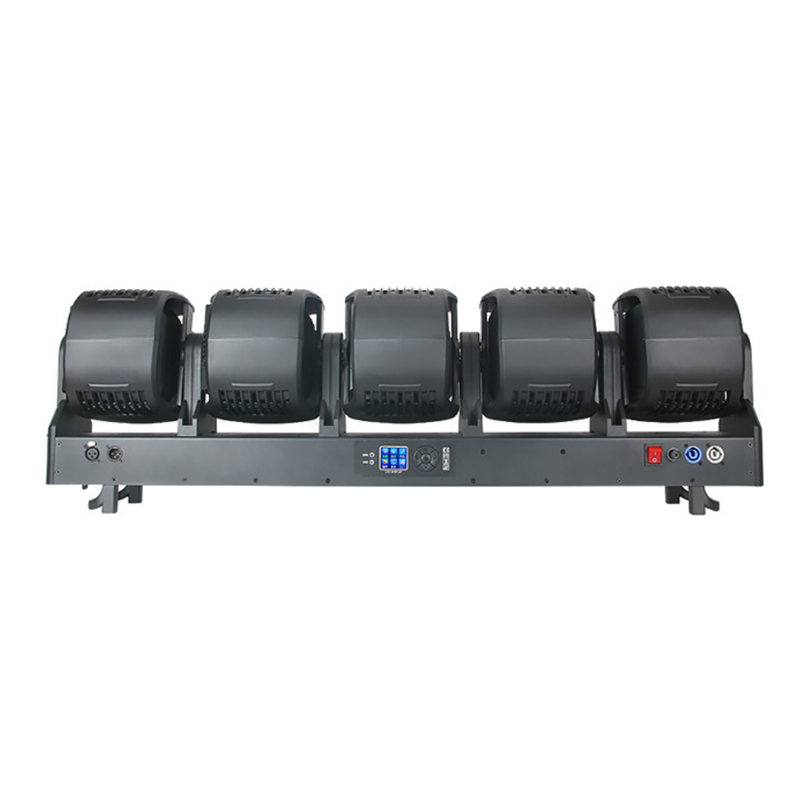

High-Power LED Moving Bar Light

Equipped with 5×120W main LEDs and 120×0.5W RGB outer LEDs, this fixture delivers up to 13,000 lumens with a beam angle of 3°–30° and a field angle of 4°–35°.

Advanced 16-bit pan (59°) and tilt (221°) movements offer smooth, precise positioning with auto-correction. Features include dynamic strobe, 0–100% linear dimming, rich colour mixing, and macro effects.

Supports DMX512 & RDM with 41/71 channel modes and onboard LCD. Ideal for professional stage, event, and architectural applications.

Specification

Light Source
Main Light: 5 x 120W LEDs
Outer Circle: 120 x 0.5W RGB LEDs
Total Lumen Output of Fixture: 13,000 lumens
Life Expectancy: 20,000 hours

Optical System
Beam Angles: 3°-50°
Field Angles: 4°-35°

Control and Program
4-button touch control panel
Display: LCD display
Protocols: DMX512, RDM

DMX Protocol Modes
Control Channels: 31/41/51/71/79CH
Firmware Upgrade: Upgrade via DMX link

Pan & Tilt
Pan Movement: 59°
Tilt Movement: 221°
Automatic Pan/Tilt position correction
Resolution: 16-bit

Other Effects
Outstanding strobe effects with variable speed
Variable light adjustment from 0-100% dimming
Outstanding colour mixing effects
Outstanding color macro effects
Linear focusing structure
Electrical and Connectors

Power In/Out

Input Voltage Range: 100-240V~ 50/60Hz
Power Consumption: 800W

Data In/Out: 3-pin XLR

Protection Rating: IP20

Fixture Specification

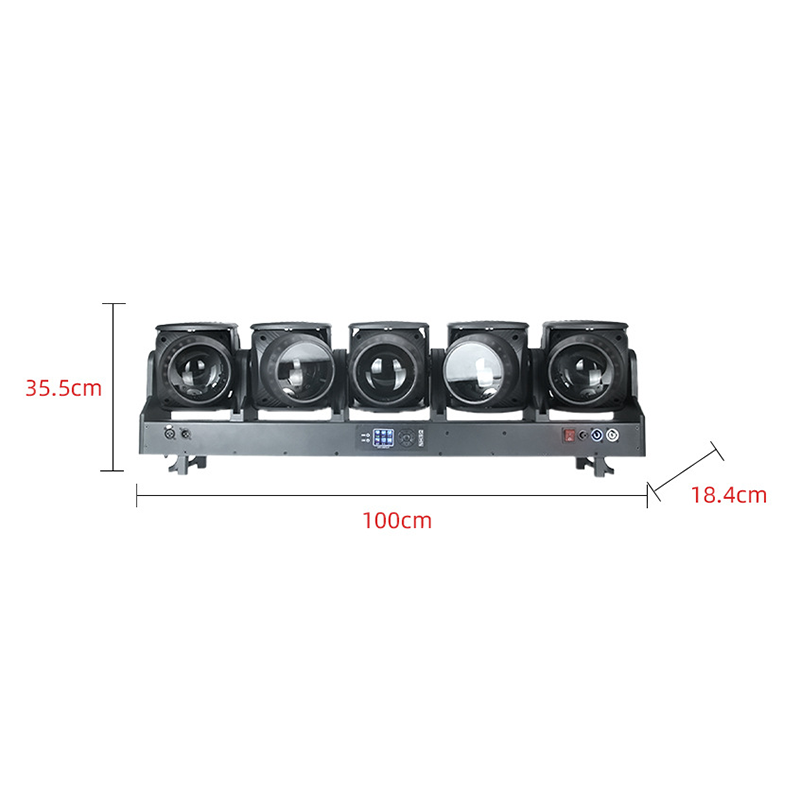

Fixture Size:1000*184*355mm
Net Weight: 26.6kg
